Straight Arm Boom Barrier 5 Million Cycle Brushless Drive For High Traffic Toll Lane Control

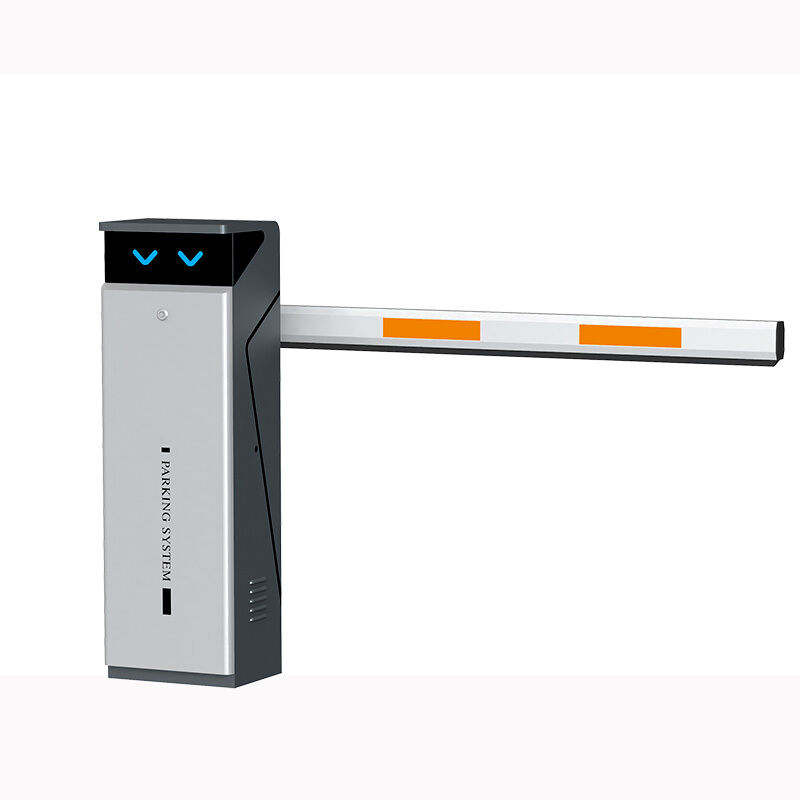

Built for lanes that never really stop, the JSD-DZ96A intelligent straight arm barrier pairs a 24V brushless motor with a helical gear transmission and a controller that keeps watch on every cycle. It lifts a 4 m straight arm in about 3 seconds and is rated for up to 5,000,000 operating cycles, which is what busy toll lanes, office campuses and retail car parks actually demand. The modular layout means a controller or gear unit can be swapped without dismantling the cabinet, shortening downtime. Loop detectors, infrared sensors, radar anti-collision and remote control all connect to the same board, so the gate slots into an existing parking management system instead of standing apart from it.

• On board logic handles open, close, stop and auto reverse without extra modules.

• Detection inputs can be assigned per lane requirement.

• Fault codes are reported locally for quicker service.

• 24V DC brushless motor runs cool and quiet under repeated use.

• Helical gears cut noise and mechanical wear compared with straight cut gears.

• 150 W draw keeps running cost low for a continuously used lane.

• Drive train rated for up to 5,000,000 operating cycles.

• Suited to toll lanes and shift change peaks where the arm moves every few seconds.

• Service intervals stay long, so maintenance visits are less frequent.

• A 4 m straight arm opens in roughly 3 seconds.

• Speed can be tuned to the traffic mix on site.

• Smooth acceleration reduces sway at the arm tip.

• Loop detector, infrared sensor and radar anti-collision inputs are ready to wire.

• Pairs with RFID readers, ANPR cameras and ticketing machines.

• Remote control works to about 30 m, with up to 50 paired handsets.

• Controller and gear unit are separate modules inside the cabinet.

• Components can be replaced individually instead of as one block.

• Cabinet is 1.5 mm SPCC steel with IP54 sealing.

Core Problem Solved:
Every second of delay adds to the queue behind the booth.

Solution:
A 3 second cycle on a 4 m arm and a 5,000,000 cycle drive keep payment lanes turning through peak hours.

Core Problem Solved:
Morning and evening peaks push hundreds of cars through the same entry.

Solution:
Intelligent control with loop and radar inputs clears vehicles one after another without manual intervention.

Core Problem Solved:
Staff and visitors arrive in bursts and expect the gate to open first time.

Solution:
Remote and RFID control on the same board allow staff lanes and visitor lanes to run in parallel.

Core Problem Solved:
Continuous stop start traffic wears out cheap drives and upsets shoppers.

Solution:
Brushless drive with helical gears runs quietly and absorbs constant cycling without early failure.

Core Problem Solved:
Trucks need a wide clear opening and the gate must survive dust and weather.

Solution:
IP54 steel cabinet, wind scale 5 rating and a sturdy 1.2 mm aluminum boom handle open yard conditions.

A 24V DC brushless motor with helical gear transmission, rated at 150 W.

Yes. The cabinet can be installed left hand or right hand, and the arm direction follows the site layout.

The drive can be released manually, allowing the arm to be raised by hand until power returns.

Yes. The 1.5 mm SPCC steel housing and IP54 rating cover both indoor and outdoor positions.

Loop detectors, infrared sensors, radar anti-collision and obstacle rebound are all supported.

Yes. It integrates with parking software, RFID readers, ticketing systems and license plate recognition.

The drive train is rated for up to 5,000,000 operating cycles.

Up to 50 handsets can be paired, with a working range of about 30 m.
