| Brand Name: | Jieshida |
| Model Number: | JSD-JF1 |
| MOQ: | 1 SET |
| Price: | USD300~1500 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

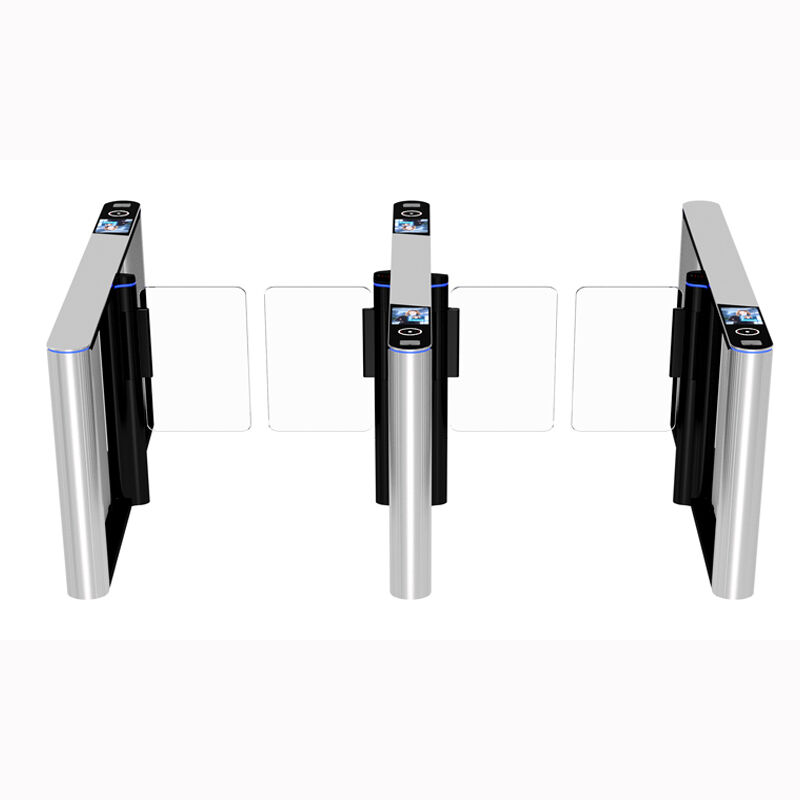

The JSD-JF1 Smart Speed Gate is an advanced entrance control solution designed for modern office buildings, commercial complexes, government facilities, and intelligent campuses. Equipped with a high-speed servo motor system and integrated face recognition panel, the gate provides fast, secure, and touchless pedestrian access management. With an opening speed of only 0.2 seconds and a throughput capacity of 50 persons per minute, it effectively reduces congestion during peak hours. The slim cabinet structure, acrylic swing panels, and 8mm tempered glass barriers create a premium appearance suitable for high-end architectural environments. Its Android-based facial recognition terminal supports fast biometric verification, large data storage, and infrared liveness detection for improved security and operational efficiency.
0.2-second fast opening speed for smooth pedestrian traffic
Supports up to 50 persons per minute in high-flow areas
Integrated facial recognition panel for touchless access control
Android operating system with intelligent management functions
360° LED ambient indicator light for clear traffic guidance
Servo motor drive ensures stable, quiet, and durable operation
Acrylic gate panels combined with 8mm tempered glass barriers
Adjustable passage width from 600mm to 900mm
Infrared liveness detection prevents fake face access attempts
Supports RFID card, QR code, fingerprint, and visitor systems
Modern slim-body design suitable for premium indoor environments
Optional electromagnetic clutch for emergency evacuation release
| Item | Specification |
|---|---|
| Product Model | JSD-JF1 |
| Opening Time | 0.2 Seconds |
| Passing Speed | 50 Persons/Minute |
| Input Voltage | AC220V |
| Working Voltage | DC24V |
| Product Size | 1500 × 110 × 990 mm |
| Passage Width | 600-900 mm Customizable |
| Gate Panel Material | Acrylic |
| Barrier Material | 8mm Tempered Glass |
| Indicator Light | 360° LED Ambient Light |
| Mechanism Structure | Integrated Core Mechanism |
| Drive Motor | Servo Motor |
| Reducer Type | Planetary Reducer |
| Optional Function | Electromagnetic Clutch |
| Item | Specification |
|---|---|
| Operating System | Android |
| Memory | 8GB |
| Display Screen | 7 Inch LCD |
| Screen Resolution | 800 × 1280 |
| Camera | 2MP HD Wide Dynamic Camera |
| Face Capacity | 50,000 Faces |
| Recognition Distance | 0.5m – 3m |
| Recognition Speed | 200-300ms |
| Liveness Detection | Infrared Supported |
| Audio | 3W Stereo Speaker |
| Offline Record Capacity | 100,000 With Photos / 1 Million Without Photos |
Core Problem Solved:
Improves employee entry efficiency while reducing waiting time and unauthorized access during peak office hours.
Core Problem Solved:
Provides organized pedestrian management and enhances visitor security with intelligent face authentication.
Core Problem Solved:
Strengthens identity verification and controlled access management for high-security areas.
Core Problem Solved:
Enhances secure personnel access with fast biometric verification and anti-spoofing technology.
Core Problem Solved:
Supports intelligent building integration and centralized access management across multiple entrances.
Core Problem Solved:
Combines premium appearance with advanced security technology for modern enterprise environments.
Yes. The gate includes an integrated Android-based facial recognition panel with infrared liveness detection.
The system supports up to 50,000 face records for large-scale personnel management.
Yes. It supports face recognition, RFID cards, QR codes, fingerprint systems, and third-party access control integration.
Yes. The standard passage width ranges from 600mm to 900mm and can be customized for project requirements.
The recognition speed is approximately 200-300 milliseconds for quick and smooth access.
Yes. With a throughput capacity of 50 persons per minute and a 0.2-second opening speed, it is ideal for busy entrances.
The optional electromagnetic clutch can support emergency release and safe evacuation during power failure situations.
