| Brand Name: | Jieshida |
| Model Number: | JSD-S08 |
| MOQ: | 1 SET |
| Price: | USD 300-1,500 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

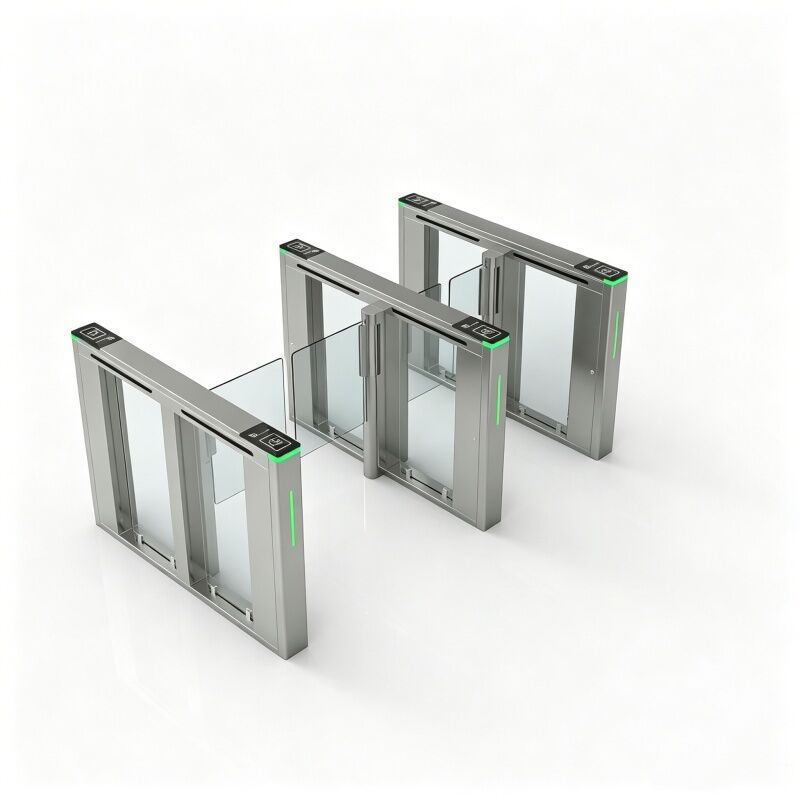

The JSD-S08 Arc Optical Turnstile is a high-performance access control solution designed for seamless integration with diverse authentication systems and reliable operation in commercial environments. Crafted from 304 brushed stainless steel (1.5mm top cover, 1.2mm chassis thickness), it features a sleek arc-shaped design that balances modern aesthetics with robust durability. Powered by a DC brushless motor, it delivers a 0.5-second fast opening response and supports over 8 million continuous cycles, making it ideal for high-traffic settings requiring long-term, low-maintenance performance.
The turnstile’s polished 304 brushed stainless steel chassis features clean, angular lines, offering excellent corrosion resistance and a refined appearance that complements upscale office buildings and commercial complexes.
Designed to work seamlessly with IC/ID card readers, QR code scanners, and biometric modules, it supports both DC24V and DC12V working voltages, ensuring flexible integration with existing access control systems.
Equipped with standard 4 pairs of expandable infrared sensors, the turnstile prevents tailgating and anti-pinch incidents. It supports one-way/two-way access control and includes dry contact signal input for versatile system connections.
Operating reliably from -10°C to 60°C (5%–95% humidity, no condensation), the turnstile performs consistently in both indoor and outdoor environments (awning recommended for outdoor installation to extend service life).
| Parameter | Details |
|---|---|
| Material | 304 Brushed Stainless Steel (1.5mm top cover, 1.2mm chassis) |
| Dimensions | 1400*120*980mm |
| Channel Width | 550–750mm |
| Power Input | AC220V±10%, 50Hz±4% (converted to DC24V/DC12V working voltage) |
| Motor Type | DC Brushless Motor |
| Opening Time | 0.5 seconds |
| Communication Interface | RS485 (≤1200m), optional TCP/IP |
| Infrared Sensors | Standard 4 pairs (expandable) |
| Service Life | Over 8 million continuous opening/closing cycles |
| Baffle Material | Acrylic or stainless steel |
| Input Interface | Dry contact signal, 12V level or pulse width ≥100ms 12V pulse signal |
Eliminates unauthorized access and tailgating, while streamlining employee entry/exit during peak hours to reduce congestion and enhance workplace security with multi-modal authentication.
Manages high foot traffic efficiently, supporting multi-point access control and integration with building security systems to ensure visitor safety and smooth flow.
Prevents trespassing and monitors student movement, with fast response times to accommodate high-volume foot traffic during class breaks without disrupting daily operations.
Delivers reliable, high-security access control with audit trails, meeting compliance requirements for regulated environments needing controlled entry and flexible system integration.
Yes, the turnstile supports dry contact signal input and RS485/TCP/IP communication, allowing seamless integration with most standard access control systems, including those using IC/ID readers and biometric modules.
It can be installed outdoors, but we recommend using an awning to protect the unit from direct rain and harsh sunlight, which helps maintain performance and extend its service life.
The power supply automatically converts AC220V input to both DC24V and DC12V working voltages, ensuring compatibility with a wide range of external devices and control systems.
