| Brand Name: | Jieshida |
| Model Number: | JSD-S01 |
| MOQ: | 1 SET |
| Price: | USD 300–1,500 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

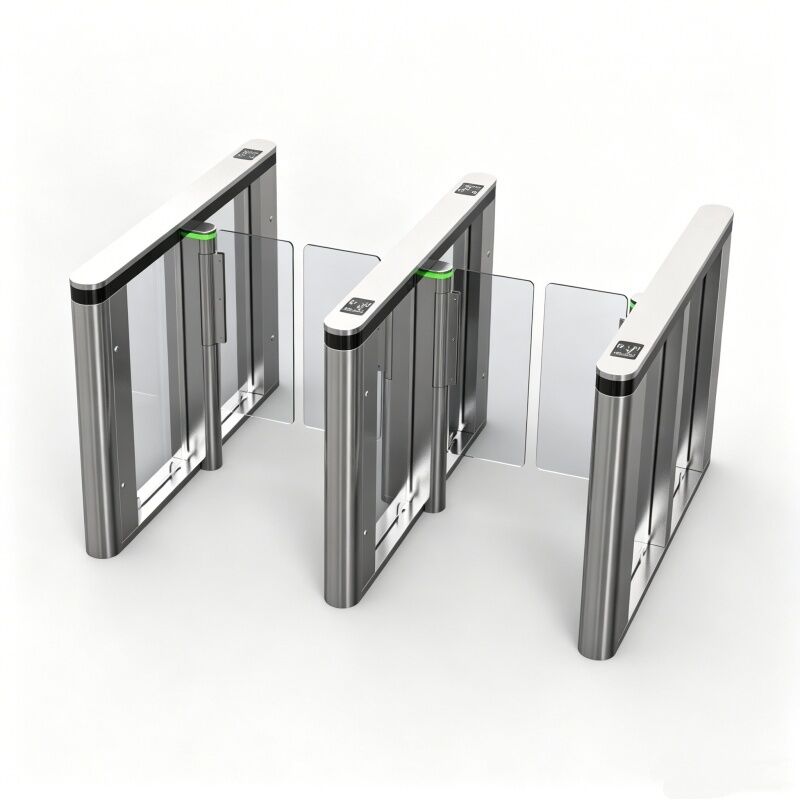

JSD-S01 Slim Speed Gate RS485 TCP/IP Optical Turnstile for Office Access
The JSD-S01 304 Stainless Steel Slim Speed Gate is a premium, DC brushless speed turnstile engineered for high-efficiency, reliable access control in modern commercial and public environments. Built with 304 brushed stainless steel (1.5mm top cover, 1.2mm cabinet thickness), it combines sleek, angular design with robust performance, supporting 0.5-second fast passing and over 8 million continuous opening/closing cycles for long-term durability. Equipped with standard 4 pairs of infrared sensors (expandable) and dry contact input compatibility, it ensures anti-pinch, tailgating prevention, and smooth pedestrian flow, while supporting RS485 (≤1200m) and optional TCP/IP communication for seamless system integration.
Key Product Features
Technical Specifications
| Parameter | Details |
|---|---|
| Material | 304 Brushed Stainless Steel (1.5mm top cover, 1.2mm cabinet) |
| Power Input | AC220V±10%, 50Hz±4% (converted to DC24V/DC12V working voltage) |
| Motor Type | DC Brushless Motor |
| Opening Time | 0.5 seconds |
| Channel Width | 550–750mm |
| Communication Interface | RS485 (≤1200m), optional TCP/IP |
| Infrared Sensors | Standard 4 pairs (expandable) |
| Service Life | Over 8 million continuous opening/closing cycles |
| Working Temperature | -10°C ~ 60°C |
| External Device Compatibility | IC/ID card reader, scanning module, face/fingerprint modules (customizable) |
Application Scenarios & Solutions
FAQ
Can the JSD-S01 support biometric authentication like face recognition?
Yes, the gate is compatible with external face, fingerprint, and QR code modules (customizable), allowing flexible integration with various authentication systems.
Is the speed gate suitable for outdoor installation?
It can be used outdoors, but installation under an awning is recommended to protect the unit from direct rain and harsh sunlight for prolonged service life.
How does the gate prevent tailgating and anti-pinch incidents?
Equipped with infrared sensors, the gate detects unauthorized follow-up attempts and automatically triggers safety measures, while the DC brushless motor ensures gentle, controlled movement to prevent injuries.
