| Brand Name: | Jieshida |
| Model Number: | JSD-Y18 |
| MOQ: | 1 SET |
| Price: | USD300~1500 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

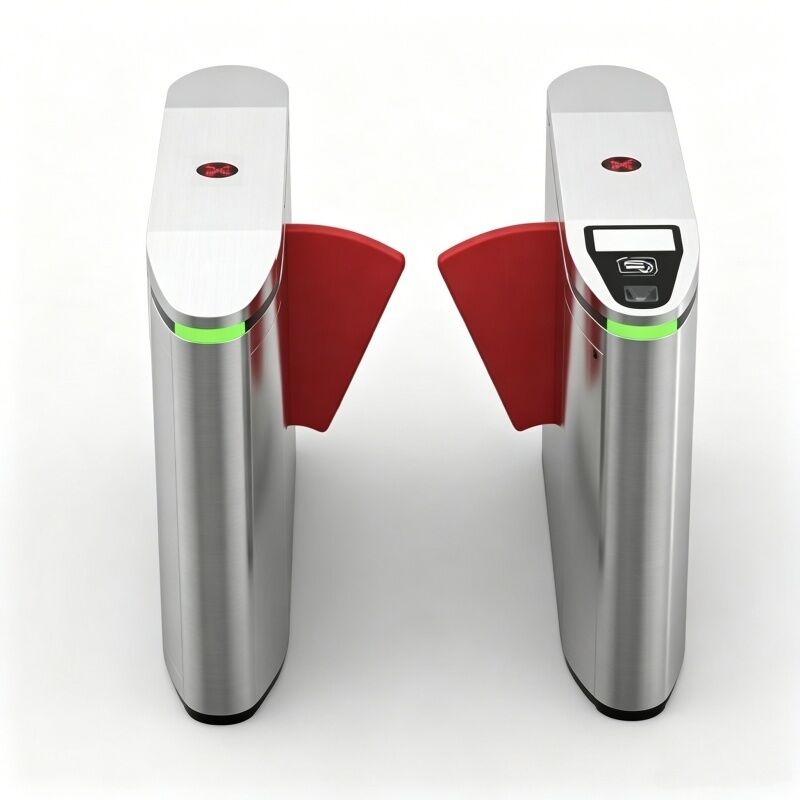

The JSD-Y18 Luxury Scenic Spot Flap Barrier is a high-end pedestrian access control solution designed for scenic areas, tourist attractions, commercial buildings, airports, and premium public venues. Manufactured with durable 304 brushed stainless steel and equipped with an advanced brushless motor system, the barrier delivers fast, stable, and low-noise operation for high-traffic environments. Featuring intelligent anti-collision protection, infrared safety detection, automatic reset, and alarm functions, the JSD-Y18 ensures secure and efficient pedestrian management while enhancing visitor experience. The system supports RFID cards, QR codes, face recognition, fingerprint access, and other customized integrations. With elegant appearance design and fast opening speed of 0.2 seconds, it is ideal for modern smart entrance management applications.
Luxury appearance design suitable for scenic spots and premium venues
Durable 304 brushed stainless steel cabinet for long-term use
High-speed opening response within 0.2 seconds
Advanced DC brushless motor with stable and low-noise operation
Intelligent anti-collision and anti-reverse protection system
Infrared safety detection with standard 4 pairs of infrared sensors
Automatic reset function improves access management efficiency
Supports one-way and two-way pedestrian control
Fire alarm integration supports automatic gate opening during emergencies
Compatible with RFID, QR code, face recognition, and fingerprint systems
Adjustable opening and closing speed for different project requirements
Multi-level buffer protection reduces mechanical damage from impacts
| Item | Specification |
|---|---|
| Product Model | JSD-Y18 |
| Product Type | Luxury Flap Barrier |
| Material | 304 Brushed Stainless Steel |
| Top Cover Thickness | 1.5 mm |
| Cabinet Thickness | 1.2 mm |
| Dimensions | 1500 * 280 * 980 mm |
| Passage Width | ≤550 mm |
| Drive Motor | DC Brushless Motor / Optional Servo Motor |
| Opening Time | 0.2 Seconds |
| Passage Direction | One-way / Two-way |
| Input Signal | Dry Contact / 12V Pulse Signal |
| Communication Interface | RS485 / Optional TCP/IP |
| Communication Distance | ≤1200 m |
| Infrared Sensors | Standard 4 Pairs (Expandable) |
| Barrier Material | Acrylic or Stainless Steel |
| Power Supply | AC220V ±10%, 50Hz |
| Working Voltage | DC24V / DC12V |
| Operating Temperature | -10℃ to 60℃ |
| Humidity | 5% – 95%, No Condensation |
| Installation Environment | Indoor / Outdoor |
Core Problem Solved:
Improves visitor entry efficiency while preventing unauthorized access and reducing queue congestion during peak hours.
Core Problem Solved:
Provides fast and intelligent ticket verification for large visitor flow management.
Core Problem Solved:
Enhances pedestrian traffic control with fast passage speed and reliable security management.
Core Problem Solved:
Improves entrance management efficiency while maintaining a premium and modern appearance.
Core Problem Solved:
Ensures secure access control and organized pedestrian flow in high-security public areas.
The flap barrier supports RFID cards, QR code scanners, face recognition devices, fingerprint modules, and other customized access systems.
The system includes infrared anti-pinch protection, anti-collision buffering, anti-reverse functionality, and alarm prompts for illegal access attempts.
Yes, the JSD-Y18 is suitable for both indoor and outdoor environments.
The barrier opens within 0.2 seconds, making it suitable for high-traffic pedestrian areas.
Yes, the opening and closing speeds are multi-level adjustable according to project requirements.
The system supports fire alarm signal integration, allowing the barrier to remain automatically open during emergencies for safe evacuation.
