| Brand Name: | Jieshida |
| Model Number: | JSD-Y05 |
| MOQ: | 1 SET |
| Price: | USD 300-1,500 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

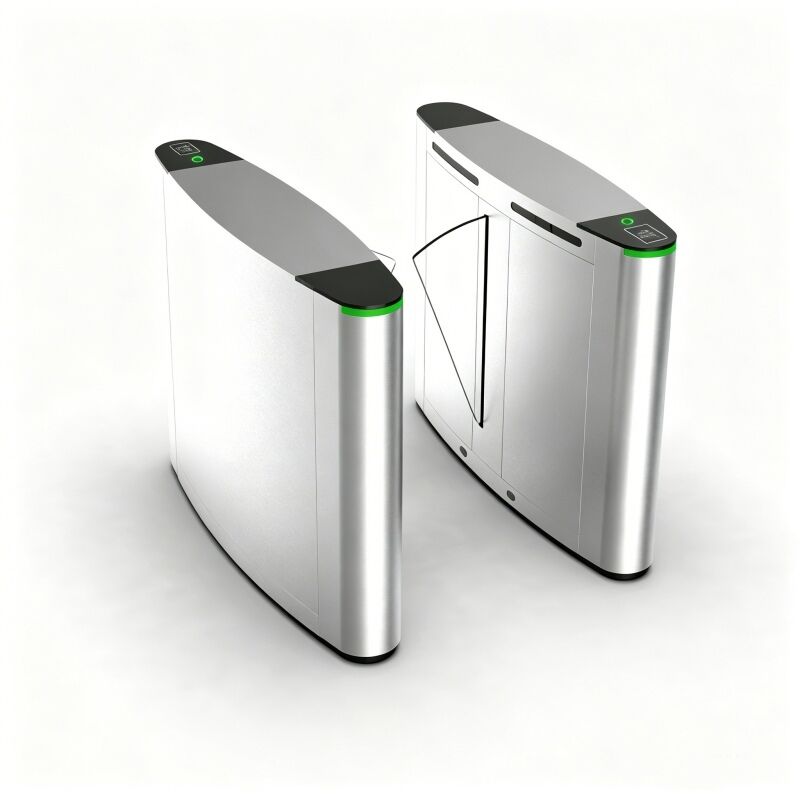

The JSD-Y05 Smart Flap Barrier Gate is an intelligent pedestrian access control solution designed for secure and efficient entry management in office buildings, corporate facilities, transportation hubs, and commercial properties. Built with durable SUS304 brushed stainless steel and equipped with acrylic flap panels, the JSD-Y05 combines modern appearance with reliable performance. Featuring a fast 0.5-second opening response, RFID card reader compatibility, anti-tailgating protection, and infrared anti-pinch technology, the system ensures smooth and secure pedestrian passage. The gate also supports integration with face recognition terminals, QR code scanners, fingerprint devices, and other access control systems, making it an ideal solution for smart entrance management in indoor and semi-outdoor environments.
Supports RFID card readers and can integrate with face recognition systems, QR code scanners, fingerprint modules, and other smart access devices.
The gate opens within 0.5 seconds, improving pedestrian throughput efficiency and reducing waiting time during busy periods.
Automatically prevents unauthorized access attempts and ensures only authorized users can pass through the gate.
Equipped with infrared sensors and intelligent anti-pinch technology to protect pedestrians during gate operation.
High-quality acrylic flap panels provide stable performance, modern appearance, and smooth operation.
Integrated LED traffic indicators provide clear visual guidance and improve passage efficiency.
Opening and closing speed can be adjusted according to actual pedestrian flow and project requirements.
Supports RS485 communication as standard, with optional TCP/IP networking for advanced access management systems.
Manufactured with SUS304 brushed stainless steel for excellent corrosion resistance and long-term durability.
Designed for stable operation in indoor and semi-outdoor environments with reliable performance under different conditions.
| Item | Specification |
|---|---|
| Model | JSD-Y05 |
| Product Type | Smart Flap Barrier Gate |
| Housing Material | SUS304 Brushed Stainless Steel |
| Flap Material | Acrylic |
| Drive Motor | DC Brush Motor |
| Passage Direction | Single / Bi-directional |
| Opening Time | 0.5 Seconds |
| Input Voltage | AC220V ±10%, 50Hz |
| Working Voltage | DC24V / DC12V |
| Communication Interface | RS485, TCP/IP (Optional) |
| Input Signal | Dry Contact / 12V Pulse Signal |
| Infrared Sensors | Standard 3 Pairs (Expandable) |
| Passage Width | ≤550 mm |
| Operating Temperature | -10℃ to 60℃ |
| Humidity | 5%–95% Non-condensing |
| Installation Environment | Indoor / Semi-outdoor |
| Service Life | Over 3 Million Cycles |
Core Problem Solved:
Enhances employee and visitor access control while maintaining organized and secure pedestrian flow.
Core Problem Solved:
Improves entrance security management and prevents unauthorized personnel access.
Core Problem Solved:
Maintains efficient pedestrian circulation and improves security at busy entrance areas.
Core Problem Solved:
Supports fast and controlled passenger access management during peak traffic periods.
Core Problem Solved:
Provides integrated access management for students, staff, and visitors using smart authentication systems.
Core Problem Solved:
Strengthens restricted area access control and improves overall security management efficiency.
Yes. The JSD-Y05 is compatible with RFID card readers and also supports face recognition, QR code scanners, and fingerprint systems.
Yes. The JSD-Y05 is designed for indoor and semi-outdoor installation environments.
The system includes infrared anti-pinch protection and intelligent obstacle detection to ensure safe pedestrian passage.
Yes. The opening and closing speed can be configured according to project requirements and pedestrian flow conditions.
RS485 communication is standard, while TCP/IP communication is available as an optional feature.
The flap panels are made of durable acrylic material with smooth and reliable operation.
Yes. The JSD-Y05 is designed for more than 3 million continuous opening and closing cycles.
Yes. The gate supports customized integration with multiple third-party access control systems and authentication devices.
