| Brand Name: | Jieshida |
| Model Number: | JSD-QG07 |
| MOQ: | 1 SET |
| Price: | USD300-1500 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

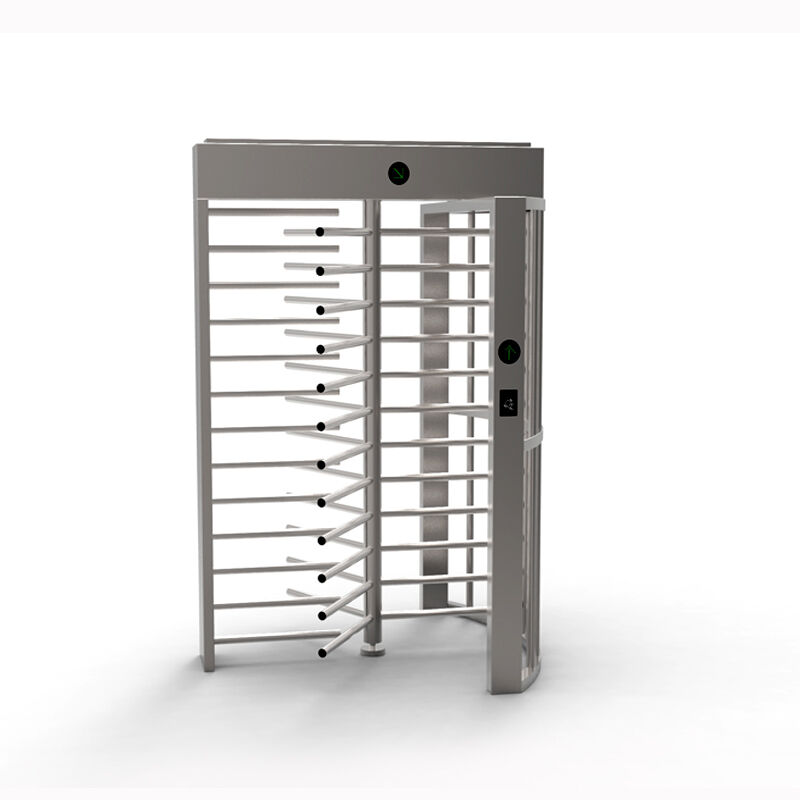

The JSD-QG07 Single Door Full Height Turnstile is a high-security pedestrian access control solution designed for prisons, detention centers, defense force facilities, and other restricted areas requiring strict entrance management. Constructed with durable 304 stainless steel, the turnstile provides excellent impact resistance, anti-corrosion performance, and long-term operational reliability. Its full-height structure effectively prevents climbing, tailgating, and unauthorized access, ensuring maximum security in sensitive environments. The system supports one-way or two-way passage control and integrates with RFID, biometric, and access management systems through TCP/IP and RS485 communication interfaces. With stable mechanical movement, fast response speed, and a long service life of up to 3 million cycles, the JSD-QG07 is ideal for continuous high-security operation.
Full height security design prevents climbing and unauthorized access
Heavy-duty 304 stainless steel construction for maximum durability
Supports one-way and two-way passage control
Mechanical semi-automatic movement with optional hydraulic buffer system
Compatible with RFID, biometric, and access control systems
Fast opening response with stable operation
TCP/IP and RS485 communication interfaces supported
Suitable for indoor and outdoor installation with rain shelter
Long service life up to 3 million operating cycles
Anti-tailgating and secure single-person passage management
| Item | Specification |
|---|---|
| Product Model | JSD-QG07 |
| Material | 304 Stainless Steel |
| Top Cover Thickness | 1.2 mm |
| Cabinet Thickness | 1.2 mm |
| Dimensions | 1400 × 1400 × 2200 mm |
| Arm Length | 600 mm |
| Passage Width | 700 mm |
| Swing Direction | One-way / Two-way |
| Drive Motor | DC Electromagnet 30W / 24V |
| Movement Type | Mechanical Semi-automatic / Optional Hydraulic Buffer |
| Opening Time | 0.5 – 2 Seconds |
| Passage Speed | 25–40 people/min |
| Communication Interface | Standard TCP/IP, RS485 |
| Input Signal | Dry Contact / +12V Level / DC12V Pulse Signal |
| Power Supply | AC220V ±10%, 50Hz |
| Working Temperature | -15℃ to 60℃ |
| Humidity | 5% – 90%, No Condensation |
| Service Life | 3 Million Cycles |
| Installation Environment | Indoor / Outdoor with Rain Shelter |
Core Problem Solved: Prevents unauthorized entry, climbing, and escape attempts while ensuring strict single-person passage control.
Core Problem Solved: Provides high-security personnel access management for restricted defense force areas.
Core Problem Solved: Enhances controlled access and protects sensitive operational zones from unauthorized intrusion.
Core Problem Solved: Restricts access to dangerous or confidential production areas and improves employee access monitoring.
Core Problem Solved: Ensures secure personnel entry management for critical infrastructure protection.
The full-height anti-climb design and single-person passage control provide high-level security for restricted facilities.
Yes, the system can integrate with RFID cards, fingerprint devices, face recognition systems, and other access control platforms.
Yes, it is suitable for outdoor installation when used with a rain shelter or protective cover.
The JSD-QG07 supports standard TCP/IP and RS485 communication interfaces.
The turnstile is designed for long-term operation with a service life of up to 3 million cycles.
