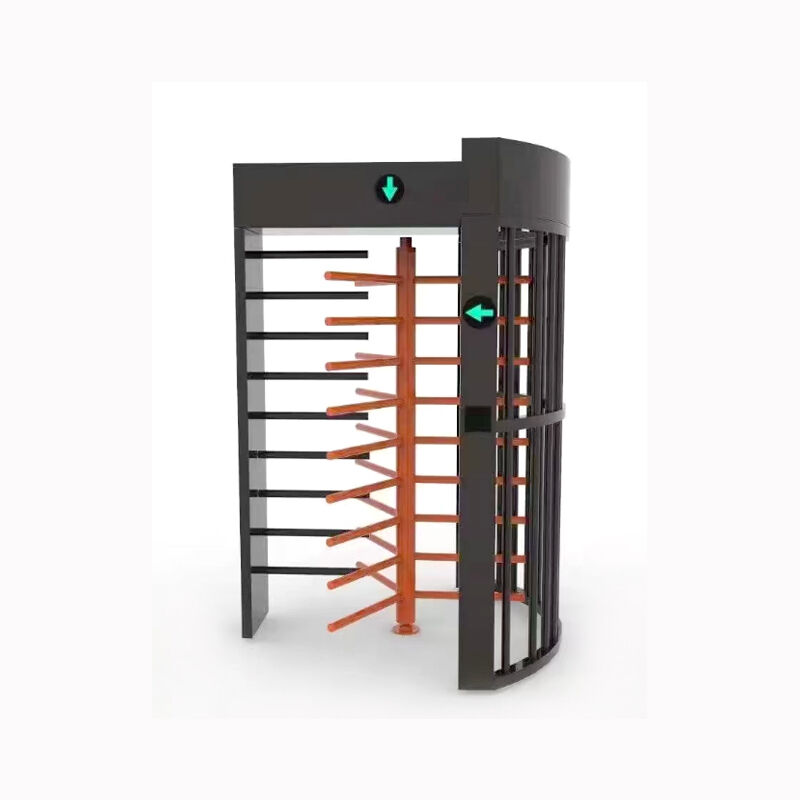

The JSD-QG02 Heavy Duty Full Height Turnstile is a secure and durable pedestrian access control solution designed for stadiums, sports venues, industrial facilities, construction sites, and other high-security environments. Built with robust 201 stainless steel construction and a semi-automatic hydraulic mechanism, the turnstile provides stable operation, long-term durability, and reliable pedestrian management. The system supports IC card readers, face recognition devices, QR code scanners, fingerprint systems, and other customized access control integrations. Featuring single or bi-directional passage control, fast 0.5-second unlocking response, and over 3 million operation cycles, the JSD-QG02 effectively improves entry security and crowd management for both indoor and outdoor applications.
The full height structure effectively prevents unauthorized access, climbing, and tailgating in high-security areas.
Equipped with a stable hydraulic mechanical core for smooth rotation and reliable long-term operation.
Manufactured with strong 201 stainless steel material for excellent structural durability and cost-effective performance.
Supports IC card access control and can integrate with various intelligent authentication systems.
Supports both single-direction and bi-directional pedestrian traffic control.
Suitable for indoor and outdoor environments with stable operation under different weather conditions.
Designed for more than 3 million opening and closing cycles for continuous heavy-duty usage.
| Item | Specification |
|---|---|
| Product Model | JSD-QG02 |
| Product Type | Full Height Turnstile |
| Material | 201 Stainless Steel |
| Top Cover Thickness | 1.2mm |
| Housing Thickness | 1.2mm |
| Cabinet Dimensions | 1400 * 1400 * 2200mm |
| Passage Direction | Single / Bi-directional |
| Drive Mode | Semi-Automatic Hydraulic Mechanism |
| Opening Time | 0.5 Seconds |
| Barrier Material | Stainless Steel |
| Communication Interface | RS485 / Optional TCP-IP |
| Input Signal | Dry Contact / 12V Pulse Signal |
| Working Voltage | DC24V / DC12V |
| Power Input | AC220V±10%, 50Hz±4% |
| Passage Width | 700mm |
| Arm Length | 600mm |
| Operating Temperature | -10℃ ~ 60℃ |
| Humidity | 5%~95%, Non-condensing |
| Working Environment | Indoor / Outdoor |
| Infrared Sensors | Not Included |
| Service Life | Over 3 Million Cycles |
Core Problem Solved:
Controls large pedestrian crowds efficiently while preventing unauthorized entry during events.
Core Problem Solved:
Restricts access to authorized workers and improves overall site security management.
Core Problem Solved:
Enhances worker attendance management and prevents unauthorized personnel from entering restricted areas.
Core Problem Solved:
Provides organized employee access control and strengthens factory entrance security.
Core Problem Solved:
Improves crowd management and ensures secure pedestrian flow in high-traffic environments.
Core Problem Solved:
Strengthens entrance control and prevents unauthorized access to sensitive locations.
The JSD-QG02 supports IC card readers, ID card readers, QR code scanners, face recognition devices, fingerprint systems, and customized third-party access control platforms.
Yes. The JSD-QG02 is suitable for both indoor and outdoor environments.
The system uses a semi-automatic hydraulic mechanical core for smooth and reliable operation.
Yes. The JSD-QG02 supports both single-direction and bi-directional passage settings.
The turnstile is designed for more than 3 million continuous operation cycles.
The standard communication interface is RS485, and optional TCP/IP communication is available.
The JSD-QG02 is ideal for stadiums, factories, construction sites, government buildings, industrial parks, and transportation facilities.
Yes. Customization options are available for access control systems, communication methods, dimensions, and project-specific functional requirements.
