| Brand Name: | Jieshida |
| Model Number: | JSD-Y16 |
| MOQ: | 1 SET |
| Price: | USD300~1500 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

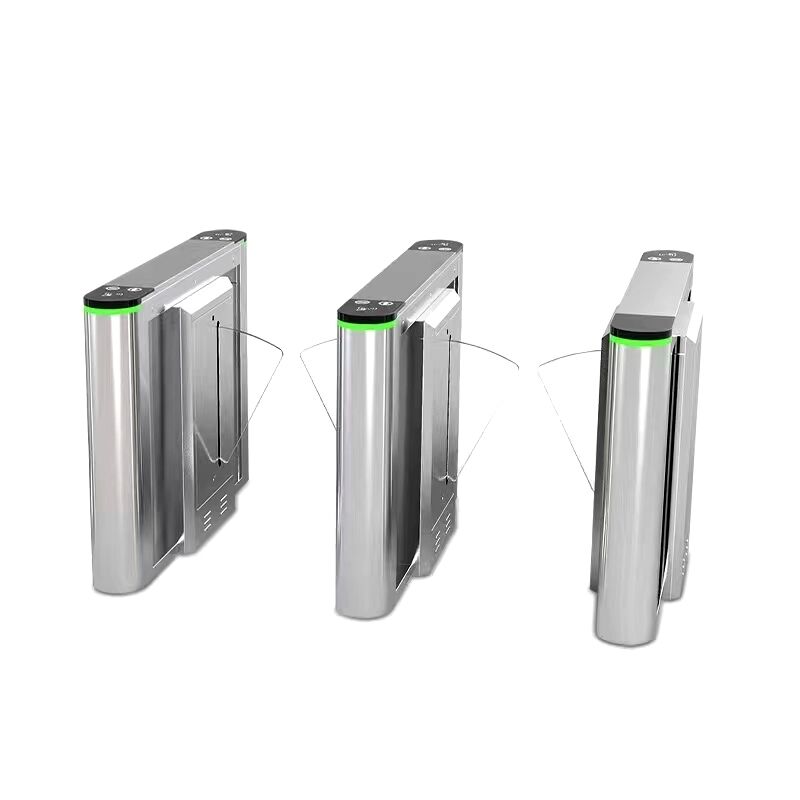

The JSD-Y16 custom flap barrier gate is designed for elegant and efficient pedestrian access management in airports, transportation terminals, commercial buildings, and high-end public facilities. Combining a modern appearance with stable performance, the gate features a durable 304 brushed stainless steel structure and a reliable DC brush motor for smooth and fast passage control. With a rapid opening time of 0.5 seconds and intelligent infrared anti-tailgating detection, the system improves passenger flow efficiency while enhancing security management. The gate supports integration with RFID cards, QR code scanners, face recognition, and fingerprint authentication systems, making it suitable for modern smart access control projects requiring both aesthetics and high operational reliability.
The streamlined stainless steel chassis design enhances the visual image of airports and premium public facilities.
Powered by a DC brush motor, the gate provides rapid opening within 0.5 seconds for efficient pedestrian flow.
Infrared sensors detect unauthorized entry and improve access control security in busy environments.
Supports IC card readers, ID card systems, QR code scanning, face recognition, and fingerprint modules.
Made from high-quality 304 brushed stainless steel with excellent corrosion resistance and structural durability.
Supports one-way and two-way access management according to project requirements.
Detachable terminal structure simplifies wiring, maintenance, and future system upgrades.
Designed for more than 5 million opening and closing cycles to ensure long-term stable operation.
| Item | Specification |
|---|---|
| Product Model | JSD-Y16 |
| Product Type | Custom Flap Barrier Gate |
| Drive Mode | DC Brush Motor |
| Opening Time | 0.5 Seconds |
| Passage Direction | One-way / Two-way |
| Power Supply | AC220V±10%, 50Hz |
| Working Voltage | DC24V / DC12V |
| Input Signal | Dry Contact / 12V Pulse Signal |
| Communication Interface | RS485 / Optional TCP/IP |
| Infrared Sensors | Standard 3 Pairs |
| Housing Material | 304 Brushed Stainless Steel |
| Baffle Material | Acrylic or Stainless Steel |
| Product Dimensions | 1400 * 300 * 980mm |
| Passage Width | ≤550mm |
| Working Temperature | -10℃ ~ 60℃ |
| Working Environment | Indoor & Outdoor |
| Service Life | ＞5 Million Cycles |
Core Problem Solved: Improves passenger throughput efficiency while maintaining secure restricted-area access control.
Core Problem Solved: Reduces congestion and supports orderly pedestrian movement during peak traffic periods.
Core Problem Solved: Enhances employee and visitor access management with intelligent authentication integration.
Core Problem Solved: Combines elegant appearance with high-level access security for premium environments.
Core Problem Solved: Strengthens visitor management and prevents unauthorized access to sensitive areas.
Core Problem Solved: Supports fast and organized visitor entry during large-scale events and exhibitions.
The gate supports IC cards, ID cards, QR code scanning, face recognition, and fingerprint verification systems.
Yes. The JSD-Y16 is designed for high-traffic environments such as airports and transportation hubs with fast and stable operation.
Yes. The gate supports both indoor and outdoor installation with reliable environmental adaptability.
Yes. The system supports configurable one-way or two-way pedestrian management.
The standard communication interface is RS485, while TCP/IP communication is optional.
The barrier flaps can be customized using acrylic or stainless steel materials.
The gate is designed for more than 5 million continuous opening and closing operations.
Yes. The detachable terminal structure allows easy wiring, inspection, maintenance, and system servicing.
