| Brand Name: | Jieshida |
| Model Number: | JSD-Y10 |
| MOQ: | 1 SET |
| Price: | USD300~1500 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

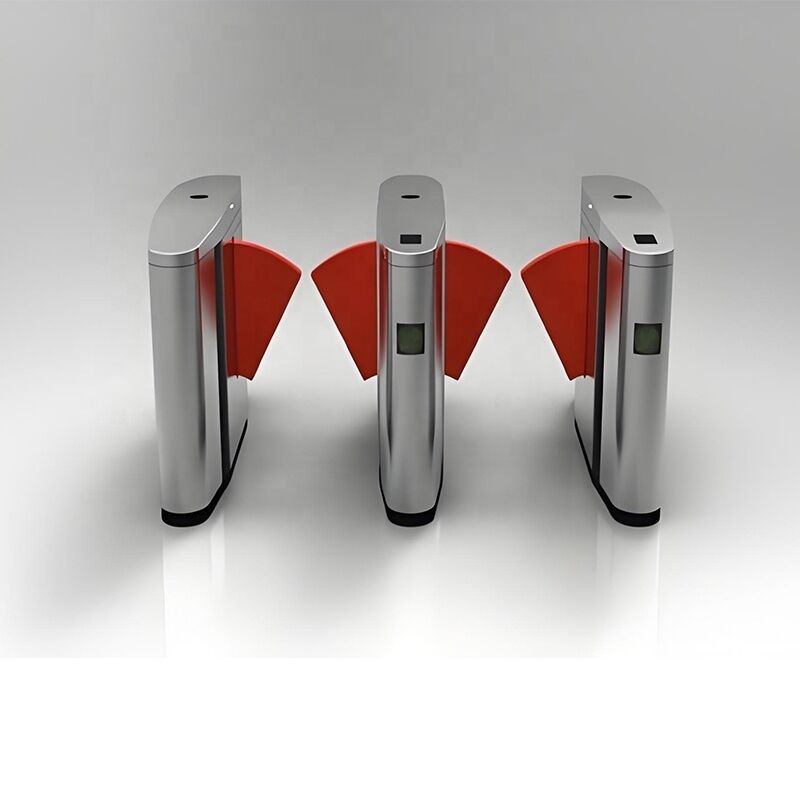

JSD-Y10 Custom Flap Barrier Gate for Scenic Area Fast Access Control
Product Overview
The JSD-Y10 custom flap barrier gate is specially designed for fast and intelligent pedestrian access management in scenic areas, tourist attractions, parks, and public venues. Featuring a durable 304 brushed stainless steel housing and a reliable DC brush motor, the system delivers stable operation with a rapid opening time of only 0.5 seconds. Equipped with infrared anti-tailgating sensors and flexible authentication integration, the gate supports IC cards, QR code ticket scanning, face recognition, and fingerprint verification for modern smart access control solutions. Its elegant appearance, smooth passage experience, and customizable configuration make it ideal for high-traffic environments requiring efficient visitor management, enhanced security, and long-term operational reliability.
Product Features
Fast Visitor Passage
The flap barrier opens within 0.5 seconds, helping reduce queue congestion and improve tourist entry efficiency.
Intelligent Anti-Tailgating Protection
Infrared sensors effectively detect unauthorized entry and improve security management in crowded public areas.
Customizable Access Solutions
Supports customized integration with QR code ticket systems, RFID cards, face recognition, and fingerprint authentication.
Durable Stainless Steel Housing
Manufactured with 304 brushed stainless steel for excellent corrosion resistance and long-lasting outdoor performance.
Flexible Direction Control
Supports one-way or two-way access control to meet different entrance and exit management requirements.
Indoor and Outdoor Compatibility
Designed to operate reliably in both indoor and outdoor environments with stable environmental adaptability.
Easy Installation and Maintenance
Detachable terminal structure simplifies wiring, installation, maintenance, and system inspection.
Long-Term Stable Operation
Engineered for more than 5 million continuous opening and closing cycles for dependable long-term service.
Technical Details
| Item | Specification |
|---|---|
| Product Model | JSD-Y10 |
| Product Type | Custom Flap Barrier Gate |
| Motor Type | DC Brush Motor |
| Opening Time | 0.5 Seconds |
| Passage Direction | One-way / Two-way |
| Power Supply | AC220V±10%, 50Hz |
| Working Voltage | DC24V / DC12V |
| Input Signal | Dry Contact / 12V Pulse Signal |
| Communication Interface | RS485 / Optional TCP/IP |
| Infrared Sensors | Standard 3 Pairs |
| Housing Material | 304 Brushed Stainless Steel |
| Baffle Material | Acrylic or Stainless Steel |
| Product Dimensions | 1400 * 300 * 980mm |
| Passage Width | ≤550mm |
| Working Environment | Indoor & Outdoor |
| Service Life | ＞5 Million Cycles |
Application Scenarios
Scenic Area Entrance Management
Core Problem Solved: Improves visitor entry efficiency and reduces waiting time during peak tourism periods.
Theme Parks and Tourist Attractions
Core Problem Solved: Supports intelligent ticket verification and prevents unauthorized access.
Exhibition Centers and Museums
Core Problem Solved: Enhances visitor flow management while maintaining secure and organized entry control.
Public Parks and Cultural Venues
Core Problem Solved: Provides automated pedestrian access management for large numbers of visitors.
Transportation and Visitor Hubs
Core Problem Solved: Maintains orderly pedestrian traffic and improves entrance security management.
Commercial and Leisure Complexes
Core Problem Solved: Integrates modern access control with aesthetic entrance design for high-end public spaces.
FAQ
Q1: What authentication methods are supported by the JSD-Y10?
The gate supports IC cards, ID cards, QR code scanning, face recognition, and fingerprint authentication systems.
Q2: Is the flap barrier suitable for outdoor scenic areas?
Yes. The system is designed for both indoor and outdoor use with durable stainless steel construction.
Q3: Can the system integrate with ticket management software?
Yes. The flap barrier can integrate with QR code ticketing systems and third-party access control platforms.
Q4: Does the gate support bidirectional passage?
Yes. The system supports both one-way and two-way access configurations.
Q5: What communication interfaces are available?
The standard communication interface is RS485, and optional TCP/IP communication is available.
Q6: What materials are available for the barrier flaps?
The flap panels can be customized with acrylic or stainless steel materials.
Q7: How many infrared sensors are included?
The standard configuration includes 3 pairs of infrared sensors, and additional sensors can be added if required.
Q8: What is the expected service life of the gate?
The system supports more than 5 million continuous opening and closing cycles for long-term reliable operation.
