| Brand Name: | Jieshida |
| Model Number: | JSD-Y08 |
| MOQ: | 1 SET |
| Price: | 300~1500 USD |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

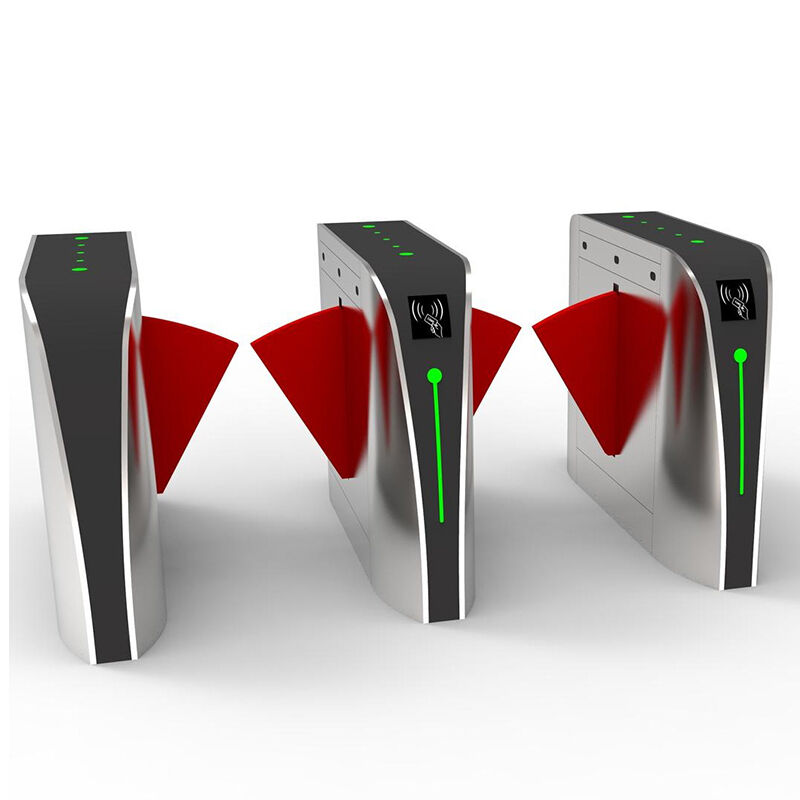

The JSD-Y08 flap barrier gate is designed for intelligent pedestrian access management in schools, office buildings, residential communities, and public facilities. Built with a durable 304 brushed stainless steel housing, the gate combines stable operation, anti-tailgating protection, and fast access control for high-traffic environments. Equipped with a DC brush motor and infrared sensors, it delivers smooth opening and closing within 0.5 seconds while improving passage safety and efficiency. The system supports integration with IC/ID card readers, QR code scanners, face recognition, and fingerprint modules, making it suitable for modern smart security projects. Its detachable terminal structure also simplifies installation, maintenance, and long-term operation in both indoor and outdoor environments.
The gate opens within 0.5 seconds using a DC brush motor, ensuring efficient pedestrian flow during peak traffic periods.
Multiple infrared sensors help detect unauthorized entry, prevent tailgating, and improve passage security.
Constructed from 304 brushed stainless steel with precision bending technology for corrosion resistance and long service life.
Supports IC card reader, ID card reader, QR scanning module, face recognition module, and fingerprint authentication.
Supports one-way or two-way traffic management according to different access control requirements.
Designed for stable operation in various environments with a working temperature range from -10℃ to 60℃.
Detachable terminal design simplifies wiring, construction, inspection, and maintenance work.
Tested for more than 5 million continuous opening and closing cycles for reliable long-term operation.
| Item | Specification |
|---|---|
| Product Model | JSD-Y08 |
| Product Type | Flap Barrier Gate |
| Drive Mode | DC Brush Motor |
| Opening Time | 0.5 Seconds |
| Passage Direction | One-way / Two-way |
| Power Supply | AC220V±10%, 50Hz |
| Working Voltage | DC24V / DC12V |
| Communication Interface | RS485, Optional TCP/IP |
| Infrared Sensors | Standard 3 Pairs |
| Housing Material | 304 Brushed Stainless Steel |
| Baffle Material | Acrylic or Stainless Steel |
| Channel Width | 550mm |
| Product Size | 1400 * 300 * 980mm |
| Working Environment | Indoor & Outdoor |
| Service Life | ＞5 Million Cycles |
Core Problem Solved: Prevents unauthorized entry and improves student passage management during peak school hours.
Core Problem Solved: Enhances employee access efficiency while reducing tailgating and unauthorized access risks.
Core Problem Solved: Provides controlled resident and visitor entry for safer community management.
Core Problem Solved: Supports attendance management and secure personnel access in high-traffic industrial environments.
Core Problem Solved: Improves visitor management and security screening efficiency in sensitive facilities.
Core Problem Solved: Maintains orderly pedestrian flow and reduces congestion during busy operating periods.
Yes. The JSD-Y08 supports integration with face recognition modules, fingerprint devices, IC/ID card readers, and QR code scanners.
Yes. The gate is designed for both indoor and outdoor environments with durable stainless steel construction.
Yes. The gate can be configured for one-way or two-way pedestrian passage management.
The standard communication interface is RS485, while TCP/IP communication is optional.
The baffle can be customized with acrylic or stainless steel materials according to project requirements.
The system is tested for more than 5 million continuous opening and closing cycles.
Yes. The standard configuration includes 3 pairs of infrared sensors, and additional sensors can be added if required.
Yes. The gate can connect with various external access control and authentication devices for customized integration.
