| Brand Name: | Jieshida |
| Model Number: | JSD-S06 |
| MOQ: | 1 SET |
| Price: | USD 300-1,500 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

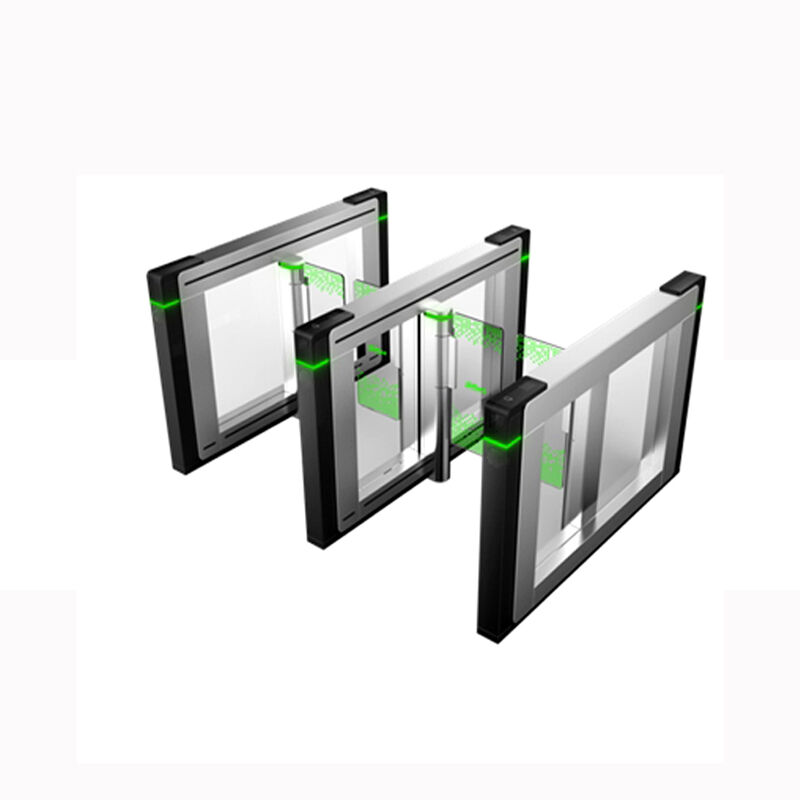

The JSD-S06 Optical Speed Turnstile is a modern, high-efficiency access control solution designed for seamless pedestrian flow and reliable security in commercial environments. Built with premium 304 brushed stainless steel (1.5mm top cover, 1.2mm cabinet thickness), it features a sleek square chassis with clean, angular lines, offering both durability and a contemporary aesthetic. Powered by a DC brushless motor, the turnstile delivers a 0.5-second fast opening time and supports over 8 million continuous opening/closing cycles, making it ideal for high-traffic spaces requiring long-term, low-maintenance performance.
The turnstile’s square chassis is precision-engineered from 304 brushed stainless steel, providing excellent corrosion resistance, scratch protection, and a polished finish that complements upscale office buildings and commercial complexes.
Choose between transparent acrylic or stainless steel baffles to match your space’s design needs, offering flexibility for both open, modern aesthetics and industrial-style security setups.
Equipped with standard 4 pairs of expandable infrared sensors, the turnstile prevents tailgating and anti-pinch incidents. It also supports one-way/two-way access control and connects seamlessly with external devices like IC/ID card readers, face modules, and fingerprint scanners.
Operating reliably from -10°C to 60°C (5%–95% humidity, no condensation), the turnstile works in both indoor and outdoor environments (awning recommended for outdoor installation to extend service life).
| Parameter | Details |
|---|---|
| Material | 304 Brushed Stainless Steel (1.5mm top cover, 1.2mm cabinet) |
| Dimensions | 1500*110*980mm |
| Channel Width | 550–750mm |
| Power Input | AC220V±10%, 50Hz±4% (converted to DC24V/DC12V working voltage) |
| Motor Type | DC Brushless Motor |
| Opening Time | 0.5 seconds |
| Communication Interface | RS485 (≤1200m), optional TCP/IP |
| Infrared Sensors | Standard 4 pairs (expandable) |
| Service Life | Over 8 million continuous opening/closing cycles |
| Baffle Material | Acrylic or stainless steel |
| Input Interface | Dry contact signal, 12V level or pulse width ≥100ms 12V pulse signal |
Eliminates unauthorized access and tailgating, while streamlining employee entry/exit during peak hours to reduce congestion and enhance workplace security.
Manages high foot traffic efficiently, supporting multi-point access control and integration with existing building security systems to ensure visitor safety.
Prevents trespassing and monitors student flow, with fast response times to accommodate movement during class breaks without disrupting daily operations.
Delivers reliable, high-security access control with audit trails, meeting compliance requirements for regulated environments needing controlled entry.
Yes, the turnstile supports connection to external face, fingerprint, and QR code modules (customizable), allowing flexible integration with various authentication solutions to meet specific security needs.
It can be installed outdoors, but we recommend using an awning to protect the unit from direct rain and harsh sunlight, which helps maintain performance and extend its service life.
Equipped with infrared sensors, the gate detects obstructions and automatically triggers safety measures, while the DC brushless motor ensures gentle, controlled movement to prevent injuries.
