| Brand Name: | Jieshida |
| Model Number: | JSD-Y09 |
| MOQ: | 1 SET |
| Price: | USD300~1500 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

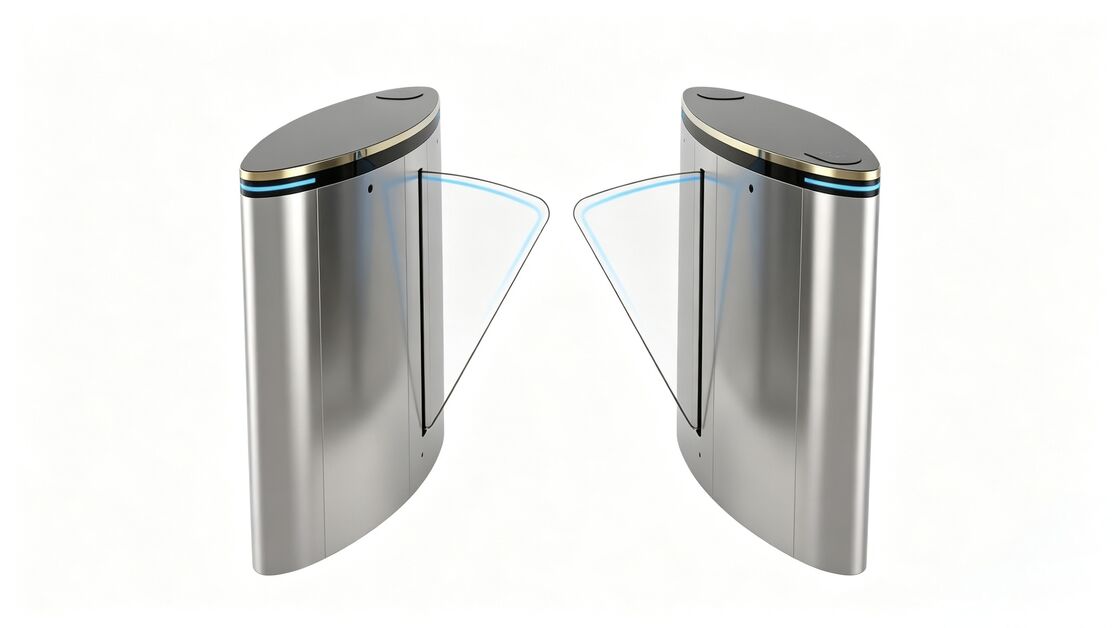

The JSD-Y09 Smart Flap Barrier Gate is an intelligent pedestrian access control solution designed for public facilities, transportation hubs, office buildings, and commercial entrances requiring reliable security management. Built with SUS304 brushed stainless steel and durable acrylic flap panels, the Y09 combines modern appearance with stable performance and long-term durability. Featuring a fast 0.5-second opening response, intelligent anti-tailgating protection, infrared anti-pinch sensors, and flexible access control integration, the system ensures smooth and secure pedestrian passage. The gate supports RFID cards, QR code scanners, face recognition terminals, and fingerprint devices, making it an ideal solution for public facility entrance security, visitor management, and smart pedestrian access control in indoor and outdoor environments.
Supports RFID card readers, face recognition systems, QR code scanners, fingerprint devices, and customized third-party access control equipment.
The flap barrier opens within 0.5 seconds, improving pedestrian throughput efficiency and reducing waiting time in busy entrances.
Automatically prevents unauthorized entry attempts and enhances security management for public facilities.
Equipped with infrared sensors and intelligent anti-pinch technology to ensure safe pedestrian passage during operation.
High-quality acrylic flap wings provide stable movement, modern appearance, and reliable long-term performance.
Integrated LED direction indicators provide clear visual guidance for users and improve passage efficiency.
The opening and closing speed can be adjusted according to pedestrian traffic requirements and installation environments.
Constructed with SUS304 brushed stainless steel for excellent corrosion resistance and structural durability.
Supports RS485 communication as standard with optional TCP/IP networking for advanced security management systems.
Designed for reliable operation in both indoor and outdoor environments with strong environmental adaptability.
| Item | Specification |
|---|---|
| Model | Y09 |
| Product Type | Smart Flap Barrier Gate |
| Housing Material | SUS304 Brushed Stainless Steel |
| Flap Material | Acrylic |
| Drive Motor | DC Brush Motor |
| Passage Direction | Single / Bi-directional |
| Opening Time | 0.5 Seconds |
| Input Voltage | AC220V ±10%, 50Hz |
| Working Voltage | DC24V / DC12V |
| Communication Interface | RS485, TCP/IP (Optional) |
| Input Signal | Dry Contact / 12V Pulse Signal |
| Infrared Sensors | Standard 3 Pairs (Expandable) |
| Passage Width | ≤550 mm |
| Operating Temperature | -10℃ to 60℃ |
| Humidity | 5%–95% Non-condensing |
| Installation Environment | Indoor / Outdoor |
| Service Life | Over 3 Million Cycles |
Core Problem Solved:
Enhances entrance security and prevents unauthorized access to restricted administrative areas.
Core Problem Solved:
Improves visitor flow management while maintaining secure and organized access control.
Core Problem Solved:
Supports efficient passenger access management and reduces unauthorized entry during peak traffic periods.
Core Problem Solved:
Strengthens employee and visitor access management with intelligent authentication systems.
Core Problem Solved:
Controls pedestrian flow and improves security management in sensitive healthcare environments.
Core Problem Solved:
Maintains smooth pedestrian circulation and enhances entrance security in busy commercial spaces.
The Y09 supports RFID card readers, QR code scanners, face recognition terminals, fingerprint devices, and customized third-party systems.
Yes. The Y09 is specifically designed for public facility entrance security and high-traffic pedestrian management.
Yes. The gate includes infrared anti-pinch protection and intelligent obstacle detection for safer pedestrian passage.
Yes. The SUS304 stainless steel cabinet is suitable for both indoor and outdoor installation environments.
Yes. Users can configure different opening and closing speed settings according to project requirements.
