Pedestrian Flap Barrier Turnstile SUS304 Automated Turnstiles For Airport / Metro Stations

Name: Pedestrian Flap Barrier Turnstile SUS304 Automated Turnstiles For Airport / Metro Stations
Brand: Shenzhen Jieshida Technology Co., Ltd
SKU: JSD-Y10
Price: 900.00 USD
Availability: InStock

Brand Name:	Jieshida
Model Number:	JSD-Y10
MOQ:	1 SET
Price:	USD 300-1500
Delivery Time:	5-8 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen City, Guangdong Province, China

Certification:

ISO9001

Name:

Flap Barrier Turnstile

Passage Width:

900 Mm

Material:

304 Stainless Steel

Dimension:

1200 × 300 × 980 Mm

Access Control Support:

RFID / Face Recognition / QR Code

Usage:

Pedestrian Flap Barrier

Support:

Stranger Detection & Mask Detection

Packaging Details:

Export-standard wooden box

Supply Ability:

1000sets/month

Highlight:

Pedestrian Flap Barrier Turnstile

SUS304 Automated Turnstiles

Metro Stations Automated Turnstiles

Product Description

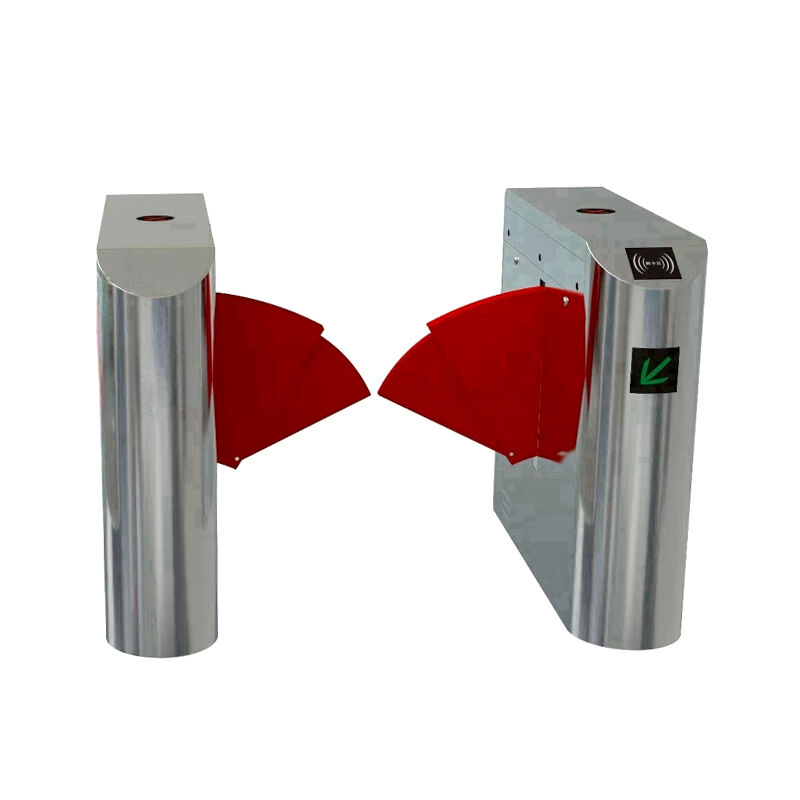

JSD-Y10 Intelligent Flap Barrier Gate for Airport and Metro Stations

The JSD-Y10 Intelligent Flap Barrier Gate is a smart pedestrian access control solution designed for airports, metro stations, railway terminals, and other high-traffic public environments. Featuring a durable SUS304 brushed stainless steel structure, fast 0.5-second opening response, and intelligent anti-tailgating protection, the JSD-Y10 ensures secure and efficient pedestrian management. The gate supports multiple authentication methods including RFID cards, QR code scanners, face recognition terminals, and fingerprint devices for flexible access control integration.

Key Features

Intelligent Access Control System
Supports integration with RFID card readers, QR code scanners, face recognition devices, fingerprint modules, and customized third-party access systems.
Fast Opening Response
The gate opens within 0.5 seconds, improving passenger throughput efficiency and reducing waiting time during peak traffic periods.
Anti-Tailgating Protection
Automatically locks the flap wings without valid authorization, effectively preventing unauthorized access and fare evasion.
Infrared & Mechanical Anti-Pinch Protection
Multiple infrared sensors and anti-pinch technology ensure safe pedestrian passage by stopping the flap movement when obstacles are detected.
Wide Passage Design
The 900 mm channel width allows more comfortable pedestrian passage and supports luggage or special access requirements.
LED Direction Indicators
High-brightness LED indicators provide clear traffic guidance for passengers and improve user experience.
Adjustable Operating Speed
The opening and closing speed can be adjusted according to different traffic management requirements and installation environments.
Durable Stainless Steel Construction
Manufactured with SUS304 brushed stainless steel for excellent corrosion resistance, long service life, and modern appearance.
Flexible Communication Interfaces
Supports RS485 communication as standard, with optional TCP/IP networking for intelligent management systems.
Easy Installation & Maintenance
Detachable terminal design simplifies wiring, installation, maintenance, and future system upgrades.

Technical Specifications

Item	Specification
Model	JSD-Y10
Product Type	Intelligent Flap Barrier Gate
Housing Material	SUS304 Brushed Stainless Steel
Drive Motor	DC Brush Motor
Passage Direction	Single / Bi-directional
Opening Time	0.5 Seconds
Power Input	AC220V ±10%, 50Hz
Working Voltage	DC24V / DC12V
Communication Interface	RS485, TCP/IP (Optional)
Input Signal	Dry Contact / 12V Pulse Signal
Barrier Material	Acrylic or Stainless Steel
Infrared Sensors	Standard 3 Pairs (Expandable)
Passage Width	900 mm
Operating Temperature	-10℃ to 60℃
Humidity	5%-95% Non-condensing
Service Life	Over 5 Million Cycles
Installation Environment	Indoor / Outdoor

Application Scenarios

Airports
Core Problem Solved: Improves passenger access efficiency and strengthens security management in boarding and restricted access areas.
Metro Stations
Core Problem Solved: Enhances passenger flow management and reduces unauthorized entry during peak commuting hours.
Railway Stations
Core Problem Solved: Provides fast and organized pedestrian control for large passenger traffic environments.
Office Buildings
Core Problem Solved: Improves employee and visitor access management with intelligent authentication systems.
Commercial Complexes
Core Problem Solved: Maintains smooth pedestrian circulation and improves entrance security in busy retail environments.
Smart Campuses
Core Problem Solved: Supports integrated access management for students, staff, and visitors using smart authentication systems.

Frequently Asked Questions

Which authentication methods does the JSD-Y10 support?

The JSD-Y10 supports RFID cards, face recognition terminals, QR code scanners, fingerprint modules, and other customized access control devices.

Is the gate suitable for high-traffic environments?

Yes. The gate features a fast 0.5-second opening response and durable structure designed for continuous high-frequency operation.

What safety features are included?

The system includes infrared and mechanical anti-pinch protection, anti-tailgating functions, LED traffic guidance, and automatic reset features.

Can the flap barrier be installed outdoors?

Yes. The SUS304 stainless steel cabinet makes the gate suitable for both indoor and outdoor environments.

Does the gate support wide passage access?

Yes. The 900 mm passage width provides comfortable access for passengers with luggage and special accessibility requirements.
