| Brand Name: | Jieshida |
| Model Number: | JSD-Y04 |
| MOQ: | 1 SET |
| Price: | USD 300-1500 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

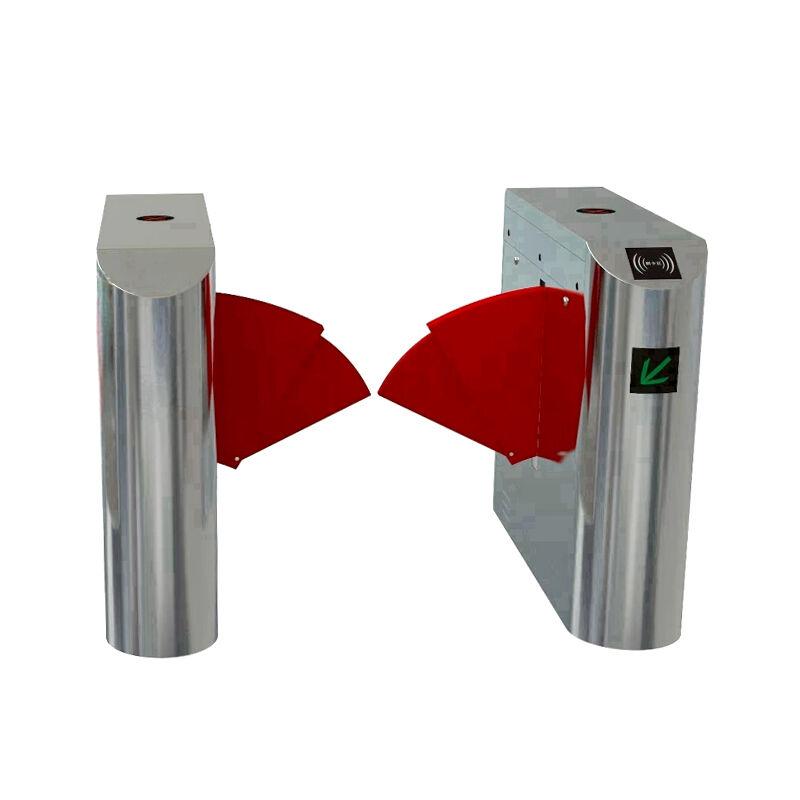

The Intelligent Flap Barrier Gate Y04 is a smart pedestrian access control solution designed for airports, metro stations, railway terminals, and other high-traffic public environments. Featuring a durable SUS304 brushed stainless steel structure, fast 0.5-second opening response, and intelligent anti-tailgating protection, the Y04 ensures secure and efficient pedestrian management. The gate supports multiple authentication methods including RFID cards, QR code scanners, face recognition terminals, and fingerprint devices for flexible access control integration. Equipped with infrared anti-pinch protection, LED traffic indicators, automatic reset function, and optional TCP/IP communication, the Y04 flap barrier gate provides reliable operation, smooth passenger flow, and enhanced security performance for modern transportation and commercial access systems.
Intelligent Access Control System
Supports integration with RFID card readers, QR code scanners, face recognition devices, fingerprint modules, and customized third-party access systems.
Fast Opening Response
The gate opens within 0.5 seconds, improving passenger throughput efficiency and reducing waiting time during peak traffic periods.
Anti-Tailgating Protection
Automatically locks the flap wings without valid authorization, effectively preventing unauthorized access and fare evasion.
Infrared & Mechanical Anti-Pinch Protection
Multiple infrared sensors and anti-pinch technology ensure safe pedestrian passage by stopping the flap movement when obstacles are detected.
Wide Passage Design
The 900 mm channel width allows more comfortable pedestrian passage and supports luggage or special access requirements.
LED Direction Indicators
High-brightness LED indicators provide clear traffic guidance for passengers and improve user experience.
Adjustable Operating Speed
The opening and closing speed can be adjusted according to different traffic management requirements and installation environments.
Durable Stainless Steel Construction
Manufactured with SUS304 brushed stainless steel for excellent corrosion resistance, long service life, and modern appearance.
Flexible Communication Interfaces
Supports RS485 communication as standard, with optional TCP/IP networking for intelligent management systems.
Easy Installation & Maintenance
Detachable terminal design simplifies wiring, installation, maintenance, and future system upgrades.
| Item | Specification |
|---|---|
| Model | Y04 |
| Product Type | Intelligent Flap Barrier Gate |
| Housing Material | SUS304 Brushed Stainless Steel |
| Drive Motor | DC Brush Motor |
| Passage Direction | Single / Bi-directional |
| Opening Time | 0.5 Seconds |
| Power Input | AC220V ±10%, 50Hz |
| Working Voltage | DC24V / DC12V |
| Communication Interface | RS485, TCP/IP (Optional) |
| Input Signal | Dry Contact / 12V Pulse Signal |
| Barrier Material | Acrylic or Stainless Steel |
| Infrared Sensors | Standard 3 Pairs (Expandable) |
| Passage Width | 900 mm |
| Operating Temperature | -10℃ to 60℃ |
| Humidity | 5%–95% Non-condensing |
| Service Life | Over 5 Million Cycles |
| Installation Environment | Indoor / Outdoor |
Core Problem Solved: Improves passenger access efficiency and strengthens security management in boarding and restricted access areas.
Core Problem Solved: Enhances passenger flow management and reduces unauthorized entry during peak commuting hours.
Core Problem Solved: Provides fast and organized pedestrian control for large passenger traffic environments.
Core Problem Solved: Improves employee and visitor access management with intelligent authentication systems.
Core Problem Solved: Maintains smooth pedestrian circulation and improves entrance security in busy retail environments.
Core Problem Solved: Supports integrated access management for students, staff, and visitors using smart authentication systems.
The Y04 supports RFID cards, face recognition terminals, QR code scanners, fingerprint modules, and other customized access control devices.
Yes. The gate features a fast 0.5-second opening response and durable structure designed for continuous high-frequency operation.
The system includes infrared and mechanical anti-pinch protection, anti-tailgating functions, LED traffic guidance, and automatic reset features.
Yes. The SUS304 stainless steel cabinet makes the gate suitable for both indoor and outdoor environments.
Yes. The 900 mm passage width provides comfortable access for passengers with luggage and special accessibility requirements.
