| Brand Name: | Jieshida |
| Model Number: | JSD-Y10 |
| MOQ: | 1 SET |
| Price: | USD 300-1,500 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

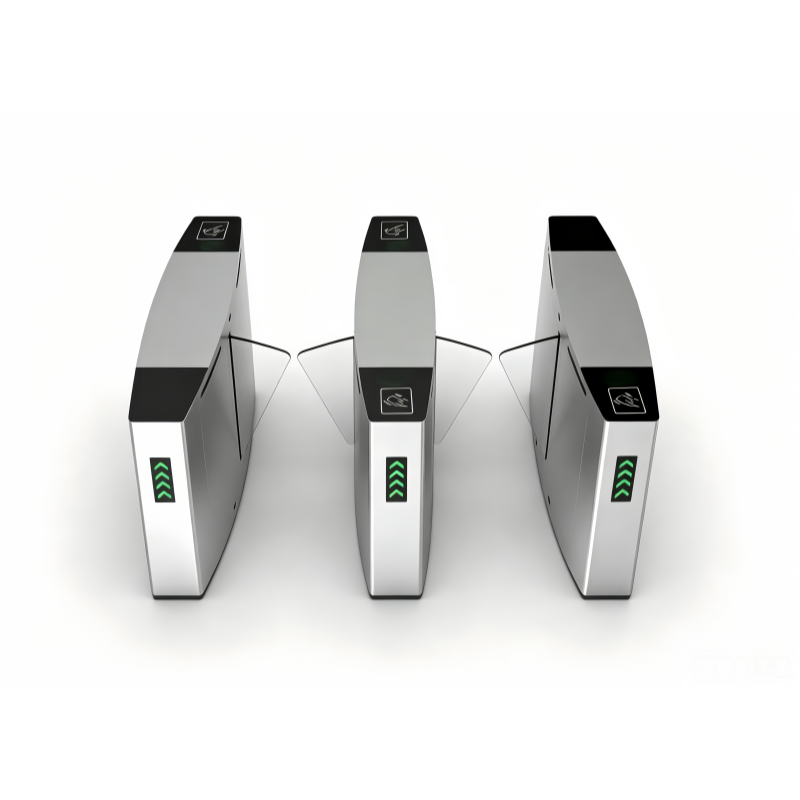

The JSD-Y10 Luxury Square Flap Barrier Gate is a high-performance pedestrian access control solution designed for airports, metro stations, and other high-traffic public environments. Featuring a premium square-shaped SUS304 stainless steel cabinet, fast 0.5-second opening response, and intelligent anti-tailgating technology, the JSD-Y10 ensures efficient and secure pedestrian management. The system supports RFID cards, QR code scanners, face recognition terminals, fingerprint devices, and other third-party access control systems. Equipped with infrared and mechanical anti-pinch protection, LED traffic indicators, automatic reset, and emergency fire alarm integration, the JSD-Y10 flap barrier delivers stable operation, enhanced safety, and smooth passenger flow for modern transportation and commercial facilities.
Luxury square cabinet structure with brushed SUS304 stainless steel finish, suitable for modern transportation hubs and premium commercial environments.
Supports integration with RFID card readers, face recognition terminals, QR code scanners, fingerprint devices, and ticketing systems.
The flap barrier automatically locks when unauthorized access attempts occur, reducing fare evasion and illegal entry.
Dual anti-pinch protection ensures safe pedestrian passage by stopping the flap wings automatically when obstacles are detected.
The gate opens within 0.5 seconds, improving passenger throughput and reducing congestion during peak traffic periods.
The flap wings automatically return to the default position after authorized passage or timeout without passage detection.
High-brightness LED traffic indicators provide clear directional guidance for passengers and improve user experience.
The opening and closing speed of the flap wings can be adjusted to match different traffic management requirements.
Supports fire alarm signal connection to keep the gate automatically open during emergencies for rapid evacuation.
When external force continuously blocks normal operation, the system automatically enters sleep protection mode to prevent motor damage.
| Item | Specification |
|---|---|
| Model | JSD-Y10 |
| Product Type | Luxury Square Flap Barrier Gate |
| Housing Material | SUS304 Brushed Stainless Steel |
| Drive Motor | DC Brushed Motor |
| Passage Direction | Single / Bi-directional |
| Opening Time | 0.5 Seconds |
| Input Voltage | AC220V ±10%, 50Hz |
| Working Voltage | DC24V / DC12V |
| Communication Interface | RS485, TCP/IP (Optional) |
| Input Signal | Dry Contact / 12V Pulse Signal |
| Barrier Material | Acrylic or Stainless Steel |
| Infrared Sensors | Standard 3 Pairs (Expandable) |
| Operating Temperature | -10℃ to 60℃ |
| Humidity | 5%–95% Non-condensing |
| Service Life | Over 5 Million Cycles |
| Installation Environment | Indoor / Outdoor |
| Supported Devices | RFID, QR Scanner, Face Recognition, Fingerprint |
Core Problem Solved:
Improves passenger access efficiency while preventing unauthorized entry into restricted boarding and security areas.
Core Problem Solved:
Enhances passenger flow management and reduces fare evasion during peak transportation hours.
Core Problem Solved:
Provides fast and secure access control for large passenger volumes while maintaining organized traffic flow.
Core Problem Solved:
Strengthens employee and visitor access management with intelligent authentication systems.
Core Problem Solved:
Maintains smooth pedestrian circulation and improves entrance security in high-traffic commercial environments.
Core Problem Solved:
Controls access to sensitive areas and improves overall security management efficiency.
Yes. The JSD-Y10 supports integration with RFID systems, QR ticket scanners, face recognition devices, and other third-party access control systems.
Yes. The gate features a fast 0.5-second opening response and durable structure designed for high-frequency continuous operation.
The JSD-Y10 includes infrared and mechanical anti-pinch protection, anti-tailgating alarms, automatic reset, and emergency free-passage functions.
Yes. The SUS304 stainless steel cabinet is suitable for both indoor and outdoor installation environments.
The flap wings automatically remain open during power outages to ensure emergency evacuation and uninterrupted pedestrian passage.
Yes. Users can configure multiple opening and closing speed levels according to actual operational requirements.
The system supports RS485 communication as standard, with optional TCP/IP connectivity available.
The gate is designed for more than 5 million continuous opening and closing cycles.
