Luxury Square Flap Gate Barrier , RFID Turnstile Gate With Card Reader

Name: Luxury Square Flap Gate Barrier , RFID Turnstile Gate With Card Reader
Brand: Shenzhen Jieshida Technology Co., Ltd
SKU: JSD-Y08
Price: 150.00 USD
Availability: InStock

Brand Name:	Jieshida
Model Number:	JSD-Y08
MOQ:	1 SET
Price:	USD 300-1,500
Delivery Time:	5-8 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen City, Guangdong Province, China

Certification:

ISO9001

Passage Width:

550 Mm

Surface Finish:

Brushed Finish

Material:

304 Stainless Steel

Cabinet Size:

1400 * 300 * 980 Mm

Operatingtemperature:

-20°C To 60°C

Operating Time:

0.2 Seconds

Name:

Flap Gate Barrier

Packaging Details:

Export-standard wooden box

Supply Ability:

1000sets/month

Highlight:

Luxury Flap Gate Barrier

Square Flap Gate Barrier

RFID Turnstile Gate With Card Reader

Product Description

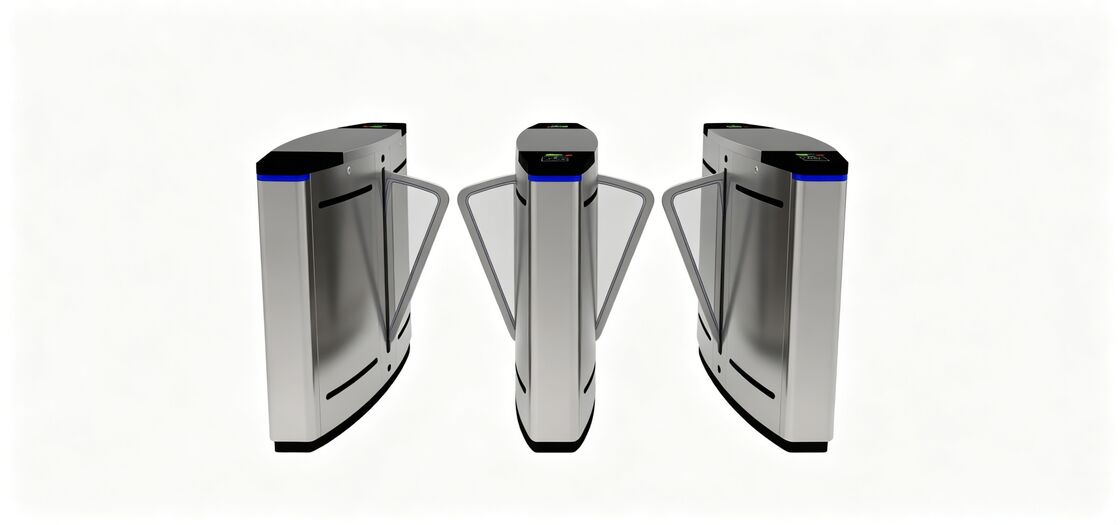

JSD-Y08 Luxury Square Flap Barrier Gate with RFID Card Reader for Secure Entry

Product Overview

The Luxury Square Flap Barrier Gate JSD-Y08 is a high-end pedestrian access control solution designed for secure and efficient entry management in modern commercial and public environments. Featuring a premium square-shaped SUS304 stainless steel housing, fast 0.5-second opening response, and intelligent anti-tailgating protection, this flap barrier gate combines elegant appearance with advanced security performance. The system supports RFID card readers, face recognition devices, QR scanners, and fingerprint modules for flexible authentication methods.

Key Features

Luxury Square Design: Modern square cabinet structure with brushed SUS304 stainless steel finish
RFID Access Control Integration: Supports RFID card readers and multiple authentication devices
Anti-Tailgating Protection: Effectively prevents unauthorized entry and tailgating behavior
Infrared & Mechanical Anti-Pinch Protection: Advanced dual safety system for pedestrian protection
Fast Opening Response: Opens within 0.5 seconds for high-traffic environments
Automatic Reset Function: Self-resetting after authorized passage or preset delay
LED Direction Indicators: High-brightness visual guidance for pedestrian movement
Adjustable Wing Operating Speed: Configurable opening and closing speeds
Fire Alarm Emergency Function: Automatic opening during emergencies for safe evacuation
Automatic Protection System: Prevents component damage from external force interference

Technical Specifications

Item	Specification
Model	JSD-Y08
Product Type	Luxury Square Flap Barrier Gate
Housing Material	SUS304 Brushed Stainless Steel
Drive Motor	DC Brushed Motor
Passage Direction	Single / Bi-directional
Opening Time	0.5 Seconds
Input Voltage	AC220V ±10%, 50Hz
Working Voltage	DC24V / DC12V
Communication Interface	RS485, TCP/IP (Optional)
Infrared Sensors	Standard 3 Pairs (Expandable)
Operating Temperature	-10℃ to 60℃
Service Life	Over 5 Million Cycles

Application Scenarios

Office Buildings

Improves employee and visitor access management while preventing unauthorized entry into restricted office areas.

Metro Stations

Enhances passenger flow efficiency and reduces fare evasion through intelligent access control and anti-tailgating protection.

Government Buildings

Provides secure pedestrian entry management for sensitive or restricted administrative areas.

Commercial Complexes

Maintains organized pedestrian traffic and improves entrance security in high-traffic commercial environments.

Smart Campuses

Supports integrated campus access control systems for students, staff, and visitors using RFID or biometric authentication.

Industrial Parks & Factories

Improves staff attendance management and controls unauthorized personnel access to production areas.

Frequently Asked Questions

Does the JSD-Y08 support RFID card access?

Yes. The JSD-Y08 is compatible with RFID card readers and can also integrate with face recognition, QR code, and fingerprint systems.

Is the gate suitable for high-traffic environments?

Yes. With a fast 0.5-second opening response and durable structure, the JSD-Y08 is designed for continuous high-frequency operation.

What safety features are included?

The gate includes infrared and mechanical anti-pinch protection, anti-tailgating detection, automatic alarms, and emergency free-passage functions.

Can the flap barrier work outdoors?

Yes. The SUS304 stainless steel structure makes it suitable for both indoor and outdoor environments.

What happens during power failure?

The flap wings automatically remain open during power outages to ensure safe evacuation and uninterrupted pedestrian passage.

Can the operating speed be adjusted?

Yes. The opening and closing speed of the flap wings can be configured according to project requirements.

What communication interfaces are supported?

The gate supports RS485 communication as standard, with optional TCP/IP connectivity available.

What is the service life of the gate?

The JSD-Y08 flap barrier gate is designed for more than 5 million continuous operating cycles.
