| Brand Name: | Jieshida |
| Model Number: | JSD-Y02 |
| MOQ: | 1 SET |
| Price: | 300~1500 USD |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

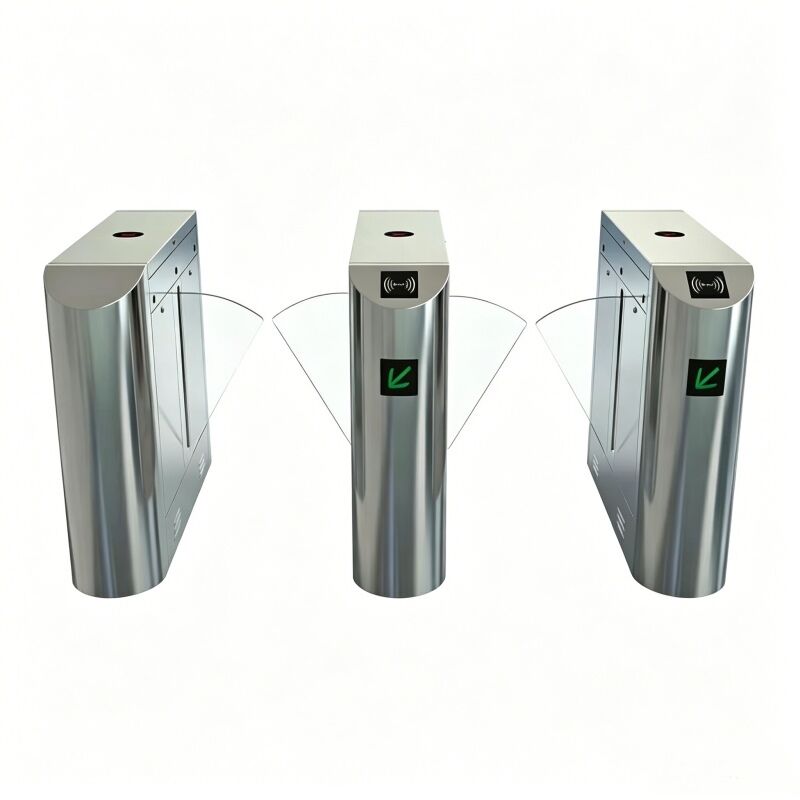

The Stainless Steel Flap Barrier Gate JSD-Y02 is an intelligent pedestrian access control solution designed for high-traffic entrances requiring fast, secure, and reliable passage management. Built with a durable 304 stainless steel housing and equipped with anti-tailgating protection, infrared anti-pinch detection, and automatic reset functions, this flap barrier gate is ideal for metro stations, office buildings, commercial facilities, factories, and smart communities. The system supports multiple authentication devices including RFID card readers, QR scanners, fingerprint modules, and face recognition terminals. With adjustable opening and closing speed, fire alarm integration, and bi-directional access control, the JSD-Y02 flap barrier provides efficient pedestrian management while improving security and user experience in both indoor and outdoor environments.
Supports single-direction or bi-directional pedestrian access control through external devices such as RFID readers, QR code scanners, biometric terminals, and push buttons.
The flap barrier automatically locks when unauthorized access is detected, effectively preventing tailgating and illegal intrusion.
Equipped with infrared sensors and mechanical anti-pinch protection to ensure safe pedestrian passage and reduce accidental injury risks.
After authorized passage, the flap wings automatically reset to the initial position. Unauthorized access permissions are canceled automatically after timeout.
Integrated LED direction indicators provide clear traffic guidance and improve user convenience during operation.
Supports connection with fire alarm systems to keep the gate automatically open during emergencies for safe evacuation.
Opening and closing speed of the flap wings can be adjusted according to different application requirements and pedestrian flow conditions.
When external force blocks normal operation continuously, the system enters protection mode automatically to prevent motor damage.
In case of power failure, the flap wings remain open automatically to allow emergency evacuation and uninterrupted pedestrian flow.
Manufactured with brushed SUS304 stainless steel featuring corrosion resistance, elegant appearance, and long-term durability.
| Item | Specification |
|---|---|
| Model | JSD-Y02 |
| Product Type | Flap Barrier Gate |
| Housing Material | SUS304 Brushed Stainless Steel |
| Drive Motor | DC Brushed Motor |
| Passage Direction | Single / Bi-directional |
| Opening Time | 0.5 Seconds |
| Passage Width | 580 mm |
| Input Voltage | AC220V ±10%, 50Hz |
| Working Voltage | DC24V / DC12V |
| Communication Interface | RS485, TCP/IP (Optional) |
| Input Signal | Dry Contact / 12V Pulse Signal |
| Infrared Sensors | Standard 3 Pairs (Expandable) |
| Barrier Material | Acrylic or Stainless Steel |
| Working Temperature | -10℃ to 60℃ |
| Humidity | 5% to 95% Non-condensing |
| Service Life | Over 3 Million Cycles |
| Installation Environment | Indoor / Outdoor |
| External Device Support | RFID, QR Scanner, Face Recognition, Fingerprint |
Core Problem Solved: Prevents unauthorized access and improves passenger flow efficiency during peak hours while ensuring rapid emergency evacuation capability.
Core Problem Solved: Enhances employee access management with integration of RFID cards, face recognition, and visitor control systems.
Core Problem Solved: Improves community security by restricting unauthorized pedestrian entry and enabling smart access management.
Core Problem Solved: Controls staff entry and exit efficiently while supporting attendance management and safety supervision.
Core Problem Solved: Maintains organized pedestrian flow and improves entrance security in high-traffic commercial environments.
Core Problem Solved: Provides secure access control and anti-tailgating protection for sensitive or restricted areas.
Yes. The JSD-Y02 flap barrier can integrate with face recognition terminals, RFID card readers, QR code scanners, fingerprint modules, and other access control devices.
Yes. The gate is suitable for both indoor and outdoor installation environments due to its durable stainless steel structure.
The flap wings automatically open during power outages, allowing free pedestrian passage for emergency evacuation.
Yes. The opening and closing speed of the flap wings can be adjusted according to different project requirements.
Yes. The system includes infrared and mechanical anti-pinch protection to improve pedestrian safety.
The flap barrier supports RS485 communication as standard, with optional TCP/IP connectivity.
Yes. The gate supports both single-direction and bi-directional access control modes.
The system is designed for more than 3 million continuous opening and closing cycles.
