| Brand Name: | Jieshida |
| Model Number: | JSD-Y01 |
| MOQ: | 1 SET |
| Price: | USD 300-1,500 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

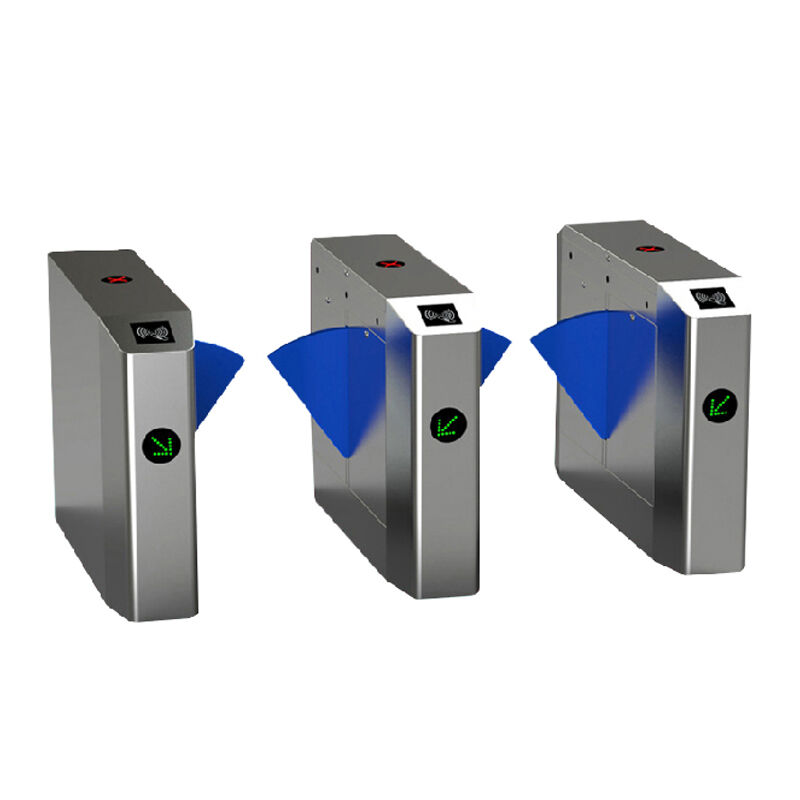

The Stainless Steel Flap Barrier Gate is designed for high-traffic access control applications such as metro stations, airports, office buildings, and commercial centers. Made from durable SUS304 stainless steel, it features fast opening speed, intelligent control technology, and stable operation for efficient pedestrian management. The system supports IC/ID cards, QR code scanners, face recognition, and fingerprint devices. Equipped with anti-pinch protection, automatic reset, infrared sensors, and low-noise operation, this flap barrier gate ensures safe, reliable, and smooth passage control in busy environments.
| Parameters | Value |
|---|---|
| Power Supply | AC220V±10%, 50Hz±4% |
| Working Voltage | DC24V / DC12V |
| Drive Mode | DC Brush Motor |
| Opening Time | 0.5S |
| Passage Direction | One-way / Two-way |
| Communication Interface | RS485 (≤1200m), TCP/IP Optional |
| Input Signal | Dry Contact / 12V Pulse Signal |
| Infrared Sensor | Standard 3 Pairs |
| Barrier Material | Acrylic / Stainless Steel |
| Working Temperature | -10℃ ~ 60℃ |
| Relative Humidity | 5% ~ 95%, No Condensation |
| Working Environment | Indoor & Outdoor |
| Service Life | ＞3 Million Times |
| Cabinet Material | 304 Brushed Stainless Steel |
| Cover Thickness | 1.2mm |
| Cabinet Thickness | 1.0mm |
| Dimension | 1200*300*980mm |
| Passage Width | 550mm |
Office Building
Flap barrier gates help manage employee and visitor access efficiently while improving office entrance security. Their fast response speed supports smooth pedestrian flow during peak working hours.
Factory
In factories, flap barrier gates control worker entry and exit, reduce unauthorized access, and support attendance management systems to improve operational security.
School
Flap barrier gates enhance campus safety by controlling student and visitor movement. They help prevent unauthorized access and create a safer learning environment.
Residential Community
For residential communities, flap barrier gates improve pedestrian access management and strengthen residential security through RFID cards, QR codes, or face recognition verification.
Subway Station
At subway stations, flap barrier gates are ideal for handling high passenger traffic efficiently. They help reduce fare evasion and maintain fast, organized passenger movement.
Government Building
Flap barrier gates improve security control in government facilities by allowing only authorized personnel to access restricted areas while supporting intelligent identity verification.
Commercial Center
In shopping malls and commercial centers, flap barrier gates help organize visitor flow, improve security management, and support smart entrance control systems.
Exhibition Hall
For exhibition halls, flap barrier gates provide fast ticket verification and efficient crowd management, helping maintain orderly access during large-scale events and exhibitions.
