| Brand Name: | Jieshida |
| Model Number: | JSD-TB10-Q |
| MOQ: | 1 SET |
| Price: | USD500~2000 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

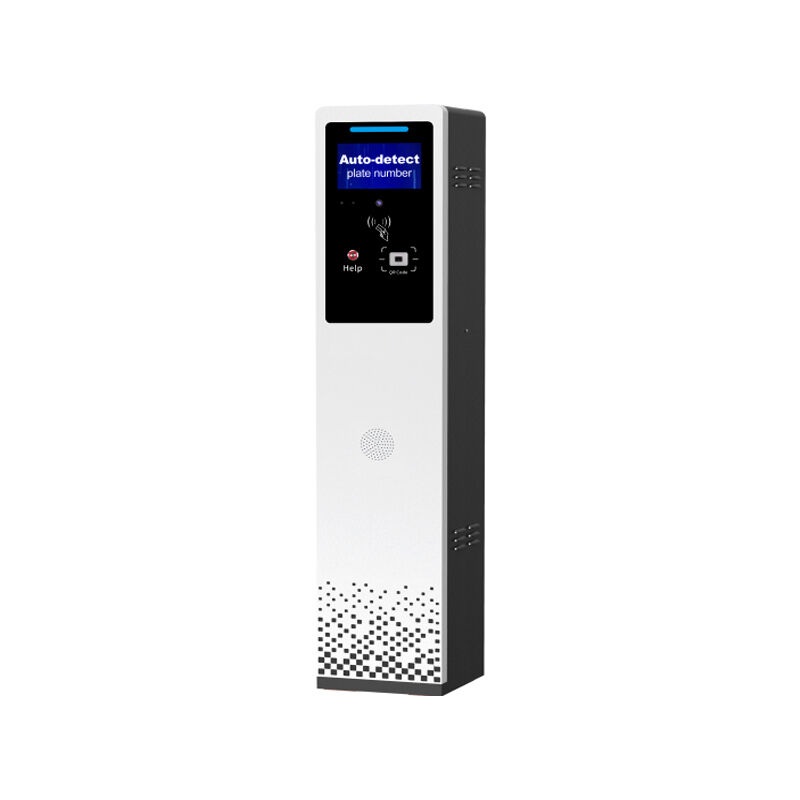

The JSD-TB10-Q Smart Parking Ticket Machine is an intelligent vehicle entry terminal designed for parking lots, commercial facilities, residential communities, and smart parking systems. Integrating a high-brightness LCD display, QR code scanner, IC/ID card reader, voice intercom system, and vehicle detection capabilities into a single unit, this parking ticket machine provides a convenient and efficient solution for vehicle access control.
Built with a durable SPCC steel housing and tempered glass front panel, the device is designed to operate reliably in both indoor and outdoor environments. The integrated 10.1-inch LCD display allows operators to present parking instructions, QR codes, advertisements, payment information, and customized messages. Combined with real-time voice communication and intelligent ticketing functions, the system enhances user experience while reducing manual intervention.
The parking ticket dispenser supports integration with barrier gates, vehicle detectors, radar sensors, parking management software, and access control systems. Whether used in a commercial parking facility or a residential parking entrance, the JSD-TB10-Q helps improve operational efficiency, vehicle throughput, and overall parking management performance.
The JSD-TB10-Q Parking Ticket Machine combines multiple intelligent functions into a compact and professional parking management terminal.
The integrated communication system allows drivers to contact the parking control center when assistance is required. At the same time, the QR scanner enables quick verification of parking payment vouchers, helping reduce exit delays and improve traffic flow.
| Item | Specification |
|---|---|
| Model | JSD-TB10-Q |
| Product Type | Smart Parking Ticket Machine |
| Display Size | 10.1 Inch LCD |
| Screen Resolution | 1024 * 600 |
| Screen Brightness | 1100 cd/m² |
| Housing Material | SPCC Steel + Tempered Glass |
| Protection Rating | IP54 |
| Working Voltage | 220V AC ±10% |
| Power Consumption | ≤150W |
| Operating Temperature | -20°C to +60°C |
| Operating Humidity | ≤95% |
| Camera Sensor | 1/4" CMOS |
| Maximum Frame Rate | 30fps @ 720P |
| Card Reader Type | IC Card / ID Card |
| Card Frequency | 13.56MHz |
| QR Code Types | QR Code, Code 128 |
| Reading Distance | 2.5cm – 84cm |
| Audio Input | Dual Array Microphone |
| Audio Output | 10W Loudspeaker |
| Audio Functions | Echo Suppression & Noise Cancellation |
Large parking facilities require efficient vehicle entry management during peak traffic periods. The ticket machine automatically assists drivers with ticket collection, QR code verification, and communication with operators, reducing waiting times and improving traffic flow.
The integrated card reader and access control capabilities help manage resident and visitor vehicle access. This improves community security while providing a convenient entry experience for authorized users.
Retail parking environments often need clear communication and payment guidance. The LCD display can present parking information, promotional content, and payment instructions, helping improve customer convenience.
Business facilities require controlled vehicle access and efficient visitor management. The parking ticket terminal streamlines entry procedures and supports communication between visitors and security personnel.
Locations with frequent visitor traffic benefit from simplified parking access. The voice intercom function provides immediate assistance while QR code scanning helps accelerate parking validation and exit processing.
The device supports both IC cards and ID cards operating at 13.56MHz.
Yes. The built-in relay output interface allows integration with parking barrier gates and access control systems.
Yes. The integrated scanner supports QR codes and Code 128 barcodes for voucher verification and parking management applications.
Yes. The IP54-rated enclosure and durable construction are designed for long-term outdoor operation.
The system supports real-time voice intercom with echo suppression and noise cancellation technology, ensuring clear communication between drivers and operators.
Yes. The LCD screen supports customized text, images, videos, parking instructions, QR codes, and advertising content.
