| Brand Name: | Jieshida |
| Model Number: | JSD-HY11 |
| MOQ: | 1 SET |
| Price: | USD500~2000 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

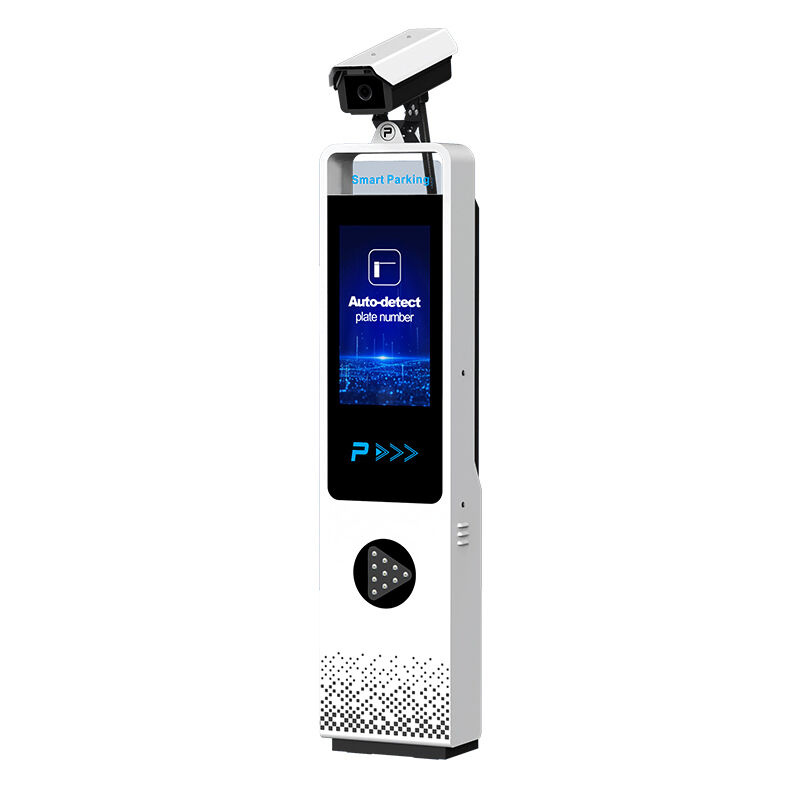

The JSD-HY11 Intelligent LPR All-in-One Machine is a comprehensive vehicle identification and parking management solution designed for modern parking facilities. By integrating a high-definition license plate recognition camera, outdoor LCD display, LED supplementary lighting, and voice broadcast module into a single device, the system significantly reduces installation complexity, wiring costs, and maintenance requirements.
Equipped with a 5MP HD camera and intelligent image processing technology, the LPR terminal delivers highly accurate license plate recognition under various lighting conditions, including nighttime environments, strong sunlight, backlight, and low-light scenarios. The built-in intelligent ISP algorithm enhances image quality and vehicle detail capture, allowing the system to recognize not only license plates but also vehicle characteristics that improve overall identification accuracy.
The 18.5-inch outdoor high-brightness display provides clear visual communication for drivers by presenting vehicle information, parking instructions, payment notifications, and customized content. This combination of vehicle recognition, information display, and intelligent interaction makes the JSD-HY11 an ideal solution for smart parking management projects.
The JSD-HY11 Intelligent LPR All-in-One Machine combines advanced recognition technology with durable outdoor construction to support efficient vehicle access control.
The all-in-one architecture simplifies deployment while providing reliable performance in demanding outdoor environments. Its intelligent lighting system automatically adjusts illumination according to time and ambient brightness, helping improve recognition quality while reducing energy consumption.
| Item | Specification |
|---|---|
| Model | JSD-HY11 |
| Product Type | Intelligent LPR All-in-One Machine |
| Camera Resolution | 5MP HD Camera |
| Sensor Type | 5MP CIS |
| Lens | 6mm Fixed Lens |
| Recognition Rate | ≥99.9% |
| Capture Rate | ≥99.9% |
| Vehicle Speed Support | 0-80 km/h |
| License Plate Coverage | 130+ Countries and Regions |
| LCD Screen Size | 18.5 Inch |
| Screen Resolution | 1366 × 768 |
| Screen Brightness | 1200 cd/m² |
| Supplement Light | 10 High-Brightness LEDs |
| Illumination Distance | 15 m |
| Video Compression | H.264 / H.265 / MJPEG |
| Communication Protocols | ONVIF, HTTP, RTSP, TCP/IP, RS485 |
| Network Interface | Dual RJ45 Ports |
| Protection Rating | IP54 |
| Housing Material | SPCC Steel + Tempered Glass |
| Operating Temperature | -30°C to 70°C |
| Operating Humidity | ≤95% |
| Working Voltage | 220V AC ±10% |
| Device Dimensions | 333 × 200 × 1400 mm |
Large parking facilities require fast and accurate vehicle identification to reduce congestion. The JSD-HY11 automatically captures and recognizes license plates, improving vehicle throughput and minimizing manual intervention.
Vehicle access management is essential for residential security. The system supports whitelist management and automatic vehicle verification, helping prevent unauthorized vehicle entry while improving convenience for residents.
Corporate facilities often require automated vehicle authorization and visitor management. The intelligent LPR terminal streamlines vehicle access while maintaining security and operational efficiency.
Retail parking environments benefit from clear communication with drivers. The integrated LCD display can present parking instructions, payment information, promotional content, and operational notices, enhancing the visitor experience.
Logistics centers require accurate vehicle tracking and efficient access control. The license plate recognition system helps automate truck and fleet vehicle management while reducing gate operation time.
The system achieves a license plate recognition rate of up to 99.9% under typical operating conditions.
Yes. The system supports license plate recognition for more than 130 countries and regions.
Yes. The IP54-rated housing, anti-UV coating, and tempered glass construction are designed for long-term outdoor operation.
Yes. Users can upload and display customized images, videos, parking instructions, advertisements, and payment information.
Yes. The device supports unlicensed vehicle detection and management functions.
The camera is designed for day and night operation and performs effectively in direct sunlight, backlight, low-light, and nighttime environments with intelligent LED supplementary lighting support.
