| Brand Name: | Jieshida |
| Model Number: | JSD-DZ66C |
| MOQ: | 1 SET |
| Price: | USD500~2000 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

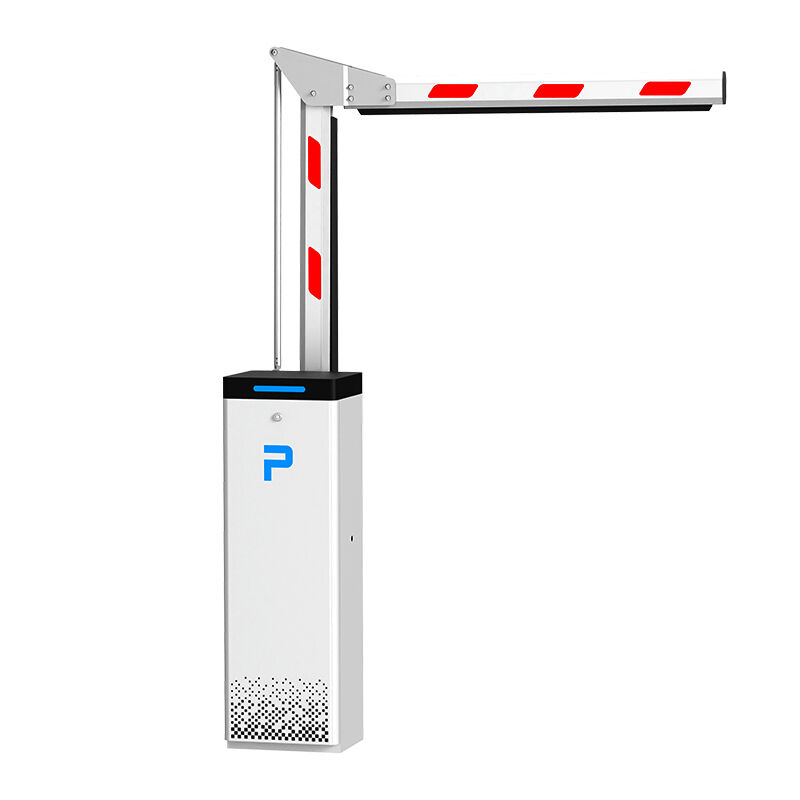

The JSD-DZ66C Folding Arm Barrier Gate is a smart vehicle access control solution designed for parking facilities with limited installation height. Unlike traditional straight boom barriers, the folding arm design allows the boom to bend during operation, making it ideal for underground parking garages, basement entrances, commercial complexes, and other areas where overhead space is restricted.
Powered by a high-performance 24V DC brushless motor, the folding arm barrier gate delivers smooth movement, fast response, and long-term operational stability. The helical gear transmission system improves efficiency while reducing mechanical wear, helping the barrier achieve up to 5 million operating cycles. Its modular structure also simplifies maintenance and component replacement, reducing downtime and service costs.
Designed for modern parking management systems, the JSD-DZ66C supports remote control operation, vehicle detection devices, infrared sensors, radar systems, and intelligent anti-collision functions. Whether used in residential communities or busy commercial parking facilities, it provides secure, efficient, and reliable vehicle access management.
The JSD-DZ66C Folding Arm Barrier Gate combines intelligent control technology with a durable mechanical structure to meet the demands of various parking environments.
The intelligent safety system enhances operational security. If the boom encounters an obstacle while closing, it automatically reverses direction to minimize impact. When connected to a loop detector, the barrier remains open while a vehicle is present, reducing the risk of accidental contact.
| Item | Specification |
|---|---|
| Model | JSD-DZ66C |
| Product Type | Folding Arm Barrier Gate |
| Motor Type | 24V DC Brushless Motor |
| Housing Material | SPCC Steel |
| Housing Thickness | 1.5 mm |
| Door Thickness | 1.2 mm |
| Housing Color | Agate Gray |
| Operating Voltage | 220 VAC |
| Maximum Power Consumption | 150 W |
| Protection Rating | IP54 |
| Opening / Closing Speed | 3 Seconds (2+2m Folding Arm) |
| Remote Frequency | 433 MHz |
| Remote Control Distance | Up to 30 m |
| Paired Remote Controllers | Up to 50 Units |
| Boom Direction | Left / Right Interchangeable |
| Wind Resistance | Wind Scale 5 |
| Operating Temperature | -20°C to 70°C |
| Humidity | ≤90% |
| Service Life | 5,000,000 Cycles |
| Cabinet Size | 320 * 280 * 980 mm |
| Net Weight | 33.4 ± 3 kg |
Many underground parking facilities have limited ceiling height, making conventional straight boom barriers difficult to install. The folding arm mechanism solves this problem by reducing the required operating space while maintaining effective vehicle access control.
The folding arm barrier gate helps manage resident and visitor vehicles while improving overall community security. Remote control operation provides convenient access for authorized users and helps reduce unauthorized vehicle entry.
Office buildings often experience high traffic volumes during peak hours. The fast opening speed and intelligent control system help improve traffic flow, minimize waiting times, and maintain efficient parking operations.
Large retail facilities require reliable entrance management to prevent congestion. The barrier gate supports vehicle detection and automatic operation, helping improve parking efficiency and customer experience.
Factories, warehouses, and logistics hubs can integrate the barrier gate with access control systems, RFID readers, license plate recognition systems, and safety sensors to create a fully automated vehicle management solution.
A folding arm barrier gate is specifically designed for locations with height restrictions. It allows the boom arm to fold during operation, making it suitable for underground parking garages and low-ceiling entrances where standard barriers cannot be installed.
Yes. The JSD-DZ66C supports both left-hand and right-hand installation. The boom direction can be adjusted according to the site layout requirements.
The barrier gate supports manual boom lifting during power outages, allowing vehicles to pass when electrical power is unavailable.
Yes. The SPCC steel housing and IP54 protection rating help protect the equipment from dust, moisture, and everyday outdoor operating conditions.
The barrier gate supports obstacle rebound protection, ground loop anti-collision, infrared protection, radar detection, and open-priority operation. These features help improve safety for vehicles and pedestrians.
Yes. The JSD-DZ66C can be integrated with parking management systems, license plate recognition systems, RFID readers, loop detectors, and other access control devices.
The folding arm mechanism is engineered for smooth and reliable movement, while the brushless motor ensures low maintenance requirements and long service life. The compact cabinet design occupies minimal installation space, making the barrier gate suitable for both new parking projects and retrofit applications.
The combination of intelligent safety functions, durable construction, and flexible installation options makes the JSD-DZ66C Folding Arm Barrier Gate an ideal choice for parking operators seeking dependable vehicle access control in environments with limited overhead clearance.
