| Brand Name: | Jieshida |
| Model Number: | JSD-B08 |
| MOQ: | 1 SET |
| Price: | USD300~1500 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

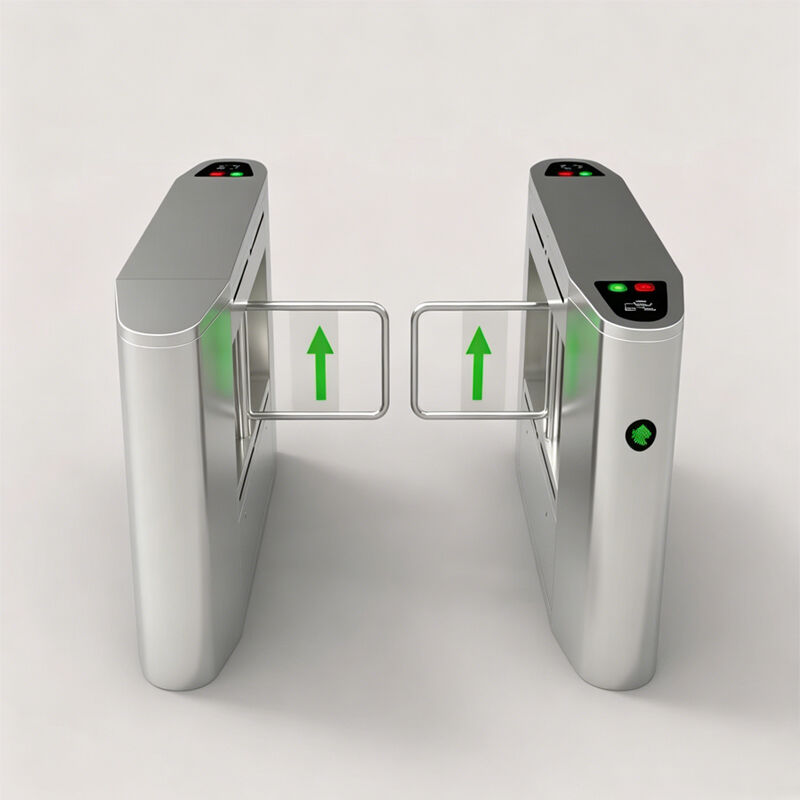

The JSD-B08 Swing Turnstile is a high-speed intelligent access control solution designed for tourist attractions, scenic areas, amusement parks, transportation hubs, and high-traffic public entrances. Constructed with premium 304 brushed stainless steel, the JSD-B08 combines modern appearance with reliable pedestrian management performance. Equipped with a DC brushless motor or optional servo motor system, the turnstile delivers ultra-fast 0.2-second opening response for efficient crowd flow management. The system supports RFID ticket checking and optional integrations with QR code scanners, face recognition terminals, fingerprint readers, and ID verification devices. Featuring intelligent anti-tailgating detection, anti-collision buffering, automatic reset, and emergency fire alarm integration, the JSD-B08 ensures safe, fast, and stable access control for indoor and outdoor environments.
The turnstile supports ultra-fast 0.2-second opening speed, improving visitor entry efficiency during peak traffic periods.
Supports RFID ticket verification and optional integration with QR code ticket scanners, face recognition systems, and ID verification devices.
Constructed with durable 304 brushed stainless steel for long-term stability and modern entrance aesthetics.
Supports DC brushless motor or optional servo motor configuration for smoother operation and stronger anti-impact performance.
Infrared sensors detect unauthorized following, illegal intrusion, and forced entry to improve entrance security.
Features strong torque rebound protection that minimizes mechanical damage during accidental impacts or forced intrusion attempts.
Adopts a next-generation ARM control system with intelligent operation management, encryption protection, and digital configuration functions.
Opening and closing speed can be adjusted according to visitor traffic conditions and operational requirements.
The gate automatically resets after passage and enters protection mode when abnormal continuous force is detected.
Supports fire alarm signal connection to automatically keep the gate open during emergency evacuation situations.
| Item | Specification |
|---|---|
| Product Model | JSD-B08 Swing Turnstile |
| Housing Material | 304 Brushed Stainless Steel |
| Drive Motor | DC Brushless Motor / Optional Servo Motor |
| Passage Direction | Single / Bi-directional |
| Opening Time | 0.2 Seconds |
| Passage Width | ≤1000mm |
| Input Voltage | AC220V±10%, 50Hz |
| Working Voltage | DC24V / DC12V |
| Communication Interface | RS485 / Optional TCP/IP |
| Infrared Sensors | 4 Pairs Standard |
| Barrier Material | Acrylic or Stainless Steel |
| Working Temperature | -10°C ~ 60°C |
| Working Environment | Indoor & Outdoor |
Core Problem Solved:
Improves ticket verification efficiency and manages high visitor traffic during peak tourism periods.
Core Problem Solved:
Provides intelligent visitor access management and prevents unauthorized entry.
Core Problem Solved:
Supports fast and secure RFID ticket checking while maintaining smooth pedestrian flow.
Core Problem Solved:
Enhances passenger flow control and improves operational efficiency in busy entrance areas.
Core Problem Solved:
Enables efficient crowd management and fast ticket verification during large-scale events.
Core Problem Solved:
Supports integrated intelligent access control and centralized security management systems.
A: The JSD-B08 supports RFID ticket verification and optional integrations with QR code scanners, face recognition systems, fingerprint readers, and ID verification devices.
A: The JSD-B08 features an ultra-fast opening response of approximately 0.2 seconds, ideal for high-traffic tourist entrances.
A: Yes. Multiple infrared sensors detect unauthorized following and trigger alarm notifications automatically.
A: Yes. The system supports both DC brushless motor and optional servo motor configurations based on project requirements.
A: The swing arm automatically opens during power failure to allow emergency evacuation and free pedestrian passage.
A: Yes. The durable 304 stainless steel structure supports both indoor and outdoor applications.
A: Yes. The turnstile supports passage widths up to 1000mm according to project requirements.
A: Standard RS485 communication is supported, with optional TCP/IP networking available for smart management system integration.
