| Brand Name: | Jieshida |
| Model Number: | JSD-GD07 |
| MOQ: | 1 SET |
| Price: | USD200-1500 |
| Delivery Time: | 5~8 days |
| Payment Terms: | T/T |

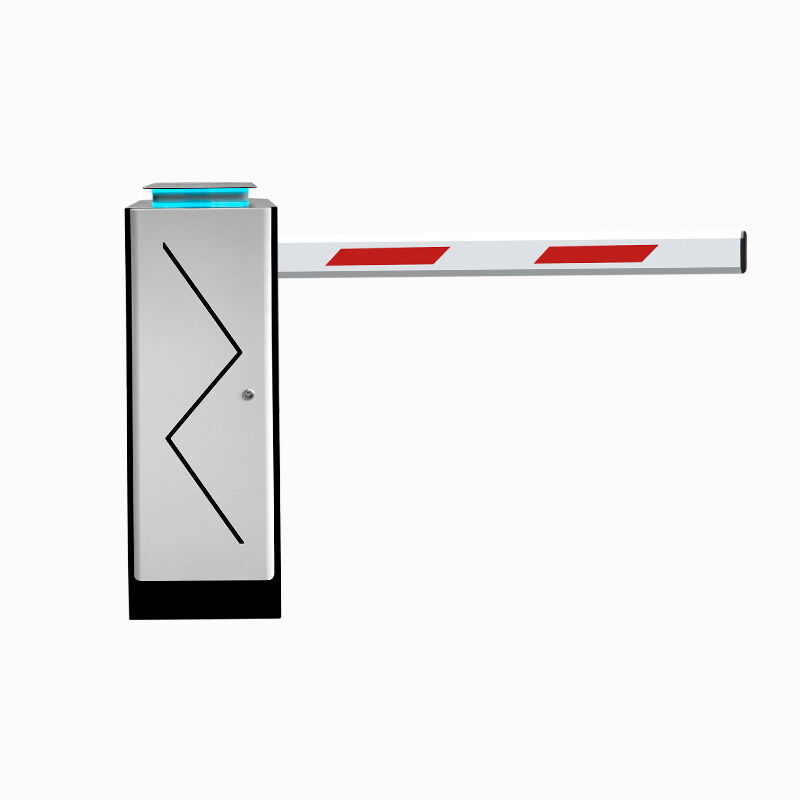

The JSD-GD07 Intelligent DC Brushless Boom Barrier is a modern vehicle access control solution designed for residential communities, commercial parking lots, office buildings, and smart property management systems. Equipped with a high-efficiency DC brushless motor, the barrier provides stable, low-noise, and energy-saving operation for high-frequency vehicle access environments. The opening and closing speed can be adjusted from 1.5 to 6 seconds, allowing flexible traffic management based on site requirements. Constructed with a reinforced cold-rolled steel chassis and high-temperature paint coating, the JSD-GD07 offers excellent durability and weather resistance for outdoor use. Supporting both straight and fence boom arms up to 6 meters, the system is ideal for intelligent and secure parking management applications.
Uses a DC brushless motor for stable performance, lower maintenance, reduced noise, and longer service life.
Supports adjustable opening and closing speeds from 1.5 to 6 seconds for flexible traffic management.
The cold-rolled steel cabinet with high-temperature paint treatment provides strong durability and corrosion resistance.
Compatible with straight boom arms and fence boom arms up to 6 meters long.
Designed for low-noise operation, making it suitable for residential and commercial environments.
The chassis cap includes traffic lights to improve vehicle guidance and parking entrance safety.
Supports remote control operation within a distance of 30 to 50 meters.
Operates reliably in temperatures ranging from -30°C to 80°C for outdoor installations.
Available in agate black, yellow, and gold chassis colors with white door panels.
| Item | Specification |
|---|---|
| Product Model | JSD-GD07 |
| Product Type | Intelligent DC Brushless Boom Barrier |
| Motor Power | DC 100W |
| Power Supply | 24V / 8A |
| Protection Level | IP44 |
| Chassis Weight | 45KG |
| Boom Weight | 5KG |
| Chassis Dimensions | 340 * 320 * 1000 mm |
| Package Dimensions | 360 * 400 * 1050 mm |
| Boom Arm Specification | 100 * 45 * 1.0 mm |
| Maximum Boom Length | 6m Straight Arm / 6m Fence Arm |
| Opening / Closing Speed | 1.5–6 Seconds Adjustable |
| Remote Control Distance | 30–50m |
| Operating Temperature | -30°C to 80°C |
Core Problem Solved:
Enhances vehicle access security while maintaining smooth and quiet operation for residents.
Core Problem Solved:
Improves vehicle entry efficiency and reduces manual parking management workload.
Core Problem Solved:
Provides organized vehicle access control for employees and visitors with stable operation.
Core Problem Solved:
Optimizes customer traffic flow and improves parking management during peak hours.
Core Problem Solved:
Supports high-frequency vehicle access with reliable and durable outdoor performance.
Core Problem Solved:
Integrates with intelligent parking systems to improve automated vehicle access management.
The barrier uses a DC brushless 100W motor for stable, energy-efficient, and low-noise operation.
The system supports straight boom arms and fence boom arms up to 6 meters long.
Yes. The operating speed can be adjusted from 1.5 to 6 seconds according to traffic requirements.
Yes. The barrier has IP44 protection and is designed for outdoor parking management applications.
The remote control distance is approximately 30 to 50 meters.
The standard package includes rod screws, expansion screws, pressure plates, two remote controls, and integrated chassis traffic lights.
