| Brand Name: | Jieshida |
| Model Number: | JSD-Z06 |
| MOQ: | 1 SET |
| Price: | USD 300-1,500 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

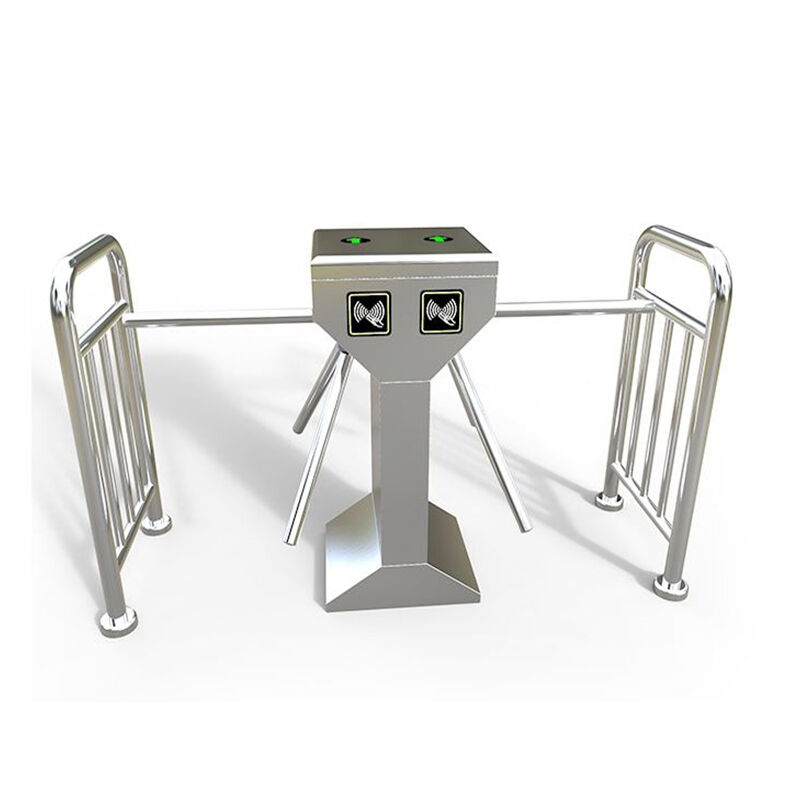

The JSD-Z06 Heavy Duty Tripod Turnstile Gate is a robust and reliable access control solution specially designed for construction sites, industrial facilities, and high-security areas. Manufactured from premium 304 stainless steel, the turnstile offers strong impact resistance, corrosion protection, and stable long-term operation in demanding environments. Its heavy-duty structure and fast passage capability help manage large worker flow efficiently while preventing unauthorized access. Supporting RFID systems, access control integration, and RS485 communication, the JSD-Z06 is suitable for intelligent personnel management and attendance tracking. With flexible arm length options and stable performance under harsh weather conditions, this tripod turnstile is ideal for both indoor and outdoor security applications.
Heavy-duty 304 stainless steel construction for durable performance
Designed for harsh environments such as construction sites
Fast and stable pedestrian access control
Supports RFID and third-party access control integration
Compact tripod structure saves installation space
Anti-tailgating function improves security management
Supports one-way and two-way passage control
RS485 communication interface for system integration
Low maintenance and long operational lifespan
Suitable for indoor and outdoor installation environments
| Item | Specification |
|---|---|
| Product Model | JSD-Z06 |
| Material | 304 Stainless Steel |
| Dimensions | 420 * 660 * 990 mm |
| Arm Length | 500 – 900 mm |
| Rated Power | 120W |
| Input Signal | Dry Contact 12V |
| Communication Interface | RS485 |
| Communication Distance | ≤1200m |
| Power Supply | AC220V/110V ±10%, 50/60Hz Optional |
| Operating Temperature | -25℃ to +60℃ |
| Relative Humidity | ≤90% |
| Open Passage Speed | 30–45 people/min |
Core Problem Solved:
Controls worker access effectively and prevents unauthorized personnel from entering restricted areas.
Core Problem Solved:
Improves employee attendance management and enhances factory entrance security.
Core Problem Solved:
Manages high-volume pedestrian traffic while protecting operational areas from unauthorized access.
Core Problem Solved:
Provides stable access control in demanding outdoor environments with high durability requirements.
Core Problem Solved:
Ensures organized worker entry and exit during large-scale project operations.
Yes, the turnstile is built with durable 304 stainless steel and is suitable for indoor and outdoor environments.
The JSD-Z06 supports RFID systems and can integrate with third-party access control platforms.
Yes, it can be configured for single-direction or bi-directional passage control.
The turnstile uses an RS485 communication interface with a maximum communication distance of 1200 meters.
The JSD-Z06 supports a passage speed of 30–45 people per minute.
