| Brand Name: | Jieshida |
| Model Number: | JSD-Z10 |
| MOQ: | 1 SET |
| Price: | USD 300-1,500 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

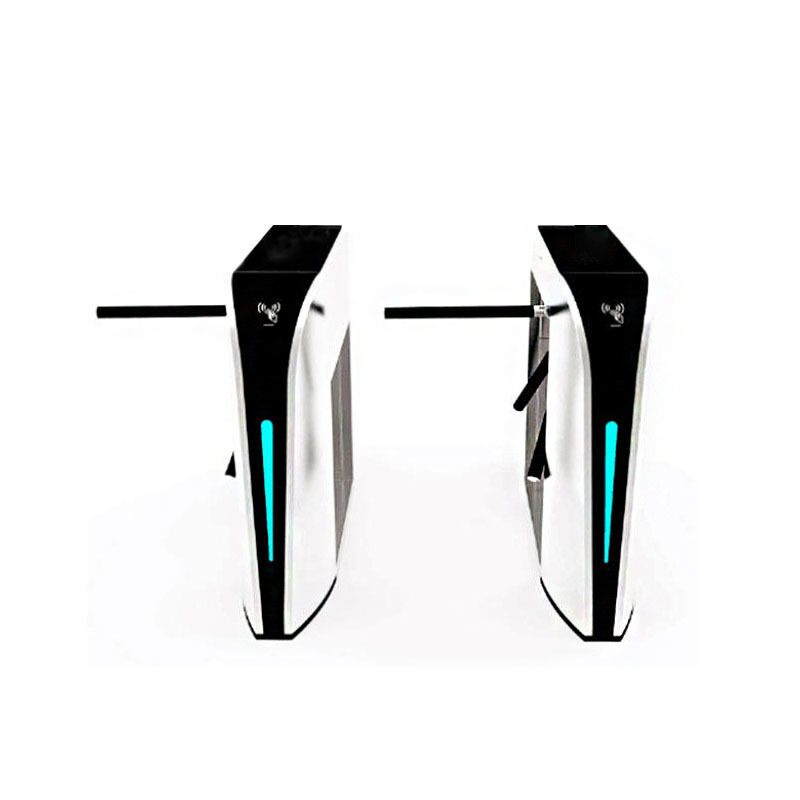

The JSD-Z10 Elegant Tripod Turnstile is a modern pedestrian access control solution designed for exhibition halls, museums, commercial buildings, and event venues. Constructed from high-quality 304 stainless steel, it combines durability, corrosion resistance, and an elegant appearance suitable for upscale environments. Equipped with QR code access functionality, dual card reading windows, and LED status indicators, the JSD-Z10 provides efficient and intelligent visitor management. Its stable operation, fast passage speed, and compact structure make it ideal for locations with high pedestrian traffic. Supporting RS485 communication and multiple access control integrations, this turnstile delivers secure, convenient, and reliable entrance management for both temporary events and permanent installations.
Premium 304 stainless steel construction for long-term durability
Elegant and modern appearance suitable for exhibition environments
Supports QR code access and multiple authentication methods
Dual card reading windows for flexible integration
LED indicator provides clear passage status guidance
Fast passage speed improves visitor flow efficiency
Anti-tailgating design enhances security management
Compact structure saves installation space
Supports single-direction or bi-directional access control
Compatible with ticketing systems, RFID cards, and visitor management systems
| Item | Specification |
|---|---|
| Product Model | JSD-Z10 |
| Material | 304 Stainless Steel |
| Dimensions | 1200 * 280 * 980 mm |
| Arm Length | 500 – 900 mm |
| Rated Power | 120W |
| Input Signal | Dry Contact 12V |
| LED Indicator | 1 Set |
| Card Reading Window | Dual Windows |
| Communication Interface | RS485 |
| Communication Distance | ≤1200m |
| Power Supply | AC220V/110V ±10%, 50/60Hz Optional |
| Operating Temperature | -25℃ to +60℃ |
| Relative Humidity | ≤90% |
| Open Passage Speed | 30–45 people/min |
| Closed Passage Speed | 25–35 people/min |
Core Problem Solved: Improves visitor admission efficiency while reducing manual ticket inspection workload.
Core Problem Solved: Provides secure and organized visitor access while maintaining a modern aesthetic appearance.
Core Problem Solved: Handles large visitor flow efficiently and prevents unauthorized entry during events.
Core Problem Solved: Enhances access management and improves pedestrian traffic organization.
Core Problem Solved: Supports QR code ticket verification for faster and more convenient visitor entry.
The turnstile supports QR code access, RFID cards, and can integrate with ticketing and visitor management systems.
Yes, the elegant stainless steel design and fast passage capability make it ideal for exhibition halls and event venues.
Yes, the JSD-Z10 supports both single-direction and bi-directional access control configurations.
The LED indicator provides clear guidance for entry status and operational direction.
Yes, the RS485 communication interface allows integration with various access control and ticketing systems.
The turnstile supports 30–45 people per minute in open mode and 25–35 people per minute in controlled access mode.
