Tripod Turnstile
Created with Pixso. Vertical Tripod Turnstile RFID Access Control Metro Station Pedestrian Solution

Vertical Tripod Turnstile RFID Access Control Metro Station Pedestrian Solution

Brand Name: Jieshida
Model Number: JSD-Z03
MOQ: 1 SET
Price: 300~1500 USD
Delivery Time: 5-8 working days
Payment Terms: T/T
Detail Information
Place of Origin:
Shenzhen
Certification:
ISO9001
Access Method:
RFID / IC Card
Installation Type:
Floor Mounted
Appearance Type:
Vertical Tripod Turnstile
Passage Direction:
Single Or Bi-directional
Color Selection:
Silver
Trade Terms:
EX-W,FOB,CIF,DDU(select Area)
Packaging Details:
Export-standard wooden box
Supply Ability:
1000sets/month
Highlight:

Vertical Tripod Turnstile Compact

,

RFID Access Control Pedestrian Solution

,

Tripod Access Control System Passenger Flow

Product Description

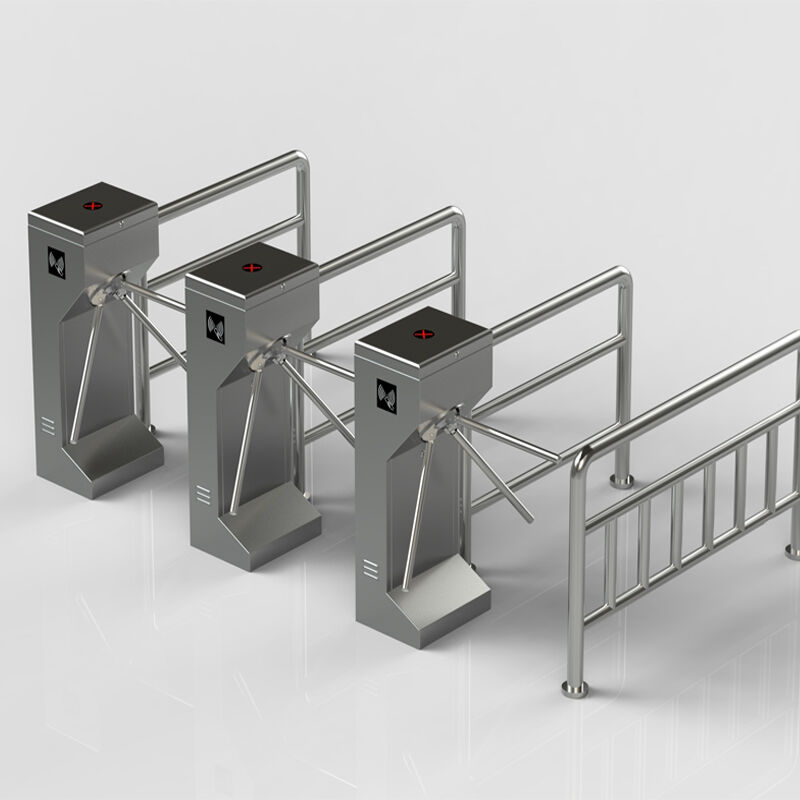

JSD-Z03 Vertical Tripod Turnstile with RFID Access for Metro Stations
Product Overview

The JSD-Z03 Vertical Tripod Turnstile is a durable and space-saving access control solution designed for high-traffic environments such as metro stations, office buildings, factories, and public facilities. Manufactured with high-quality 304 stainless steel, it offers excellent corrosion resistance and long-term operational stability for both indoor and outdoor applications. Equipped with RFID access compatibility, the turnstile supports fast and secure pedestrian management while reducing unauthorized entry and tailgating. Its stable mechanical structure, adjustable arm length, and RS485 communication interface make it suitable for integration with various access control systems. With efficient throughput and low maintenance requirements, the JSD-Z03 is an ideal choice for modern intelligent entrance management projects.


Product Features
  • Heavy-duty 304 stainless steel housing for anti-rust and long service life
  • Vertical tripod structure saves installation space in narrow entrances
  • Supports RFID card reader and multiple access control integrations
  • Stable and reliable operation with low power consumption
  • Bi-directional or single-direction pedestrian control optional
  • Fast passing speed improves traffic efficiency during peak hours
  • RS485 communication interface for easy system integration
  • Suitable for indoor and outdoor environments
  • Anti-tailgating design enhances security management
  • Adjustable arm length for different installation requirements

Technical Details
Item Specification
Product Model JSD-Z03
Material 304 Stainless Steel
Dimensions 420 * 330 * 980 mm
Arm Length 500 – 900 mm
Rated Power 120W
Input Signal Dry Contact 12V
Communication Interface RS485
Communication Distance ≤1200m
Power Supply AC220V/110V ±10%, 50/60Hz Optional
Operating Temperature -25℃ to +60℃
Relative Humidity ≤90%
Open Passing Speed 30–45 people/min
Closed Passing Speed 25–35 people/min

Application Scenarios
Metro Stations

Core Problem Solved:
Controls high passenger flow efficiently while preventing unauthorized access and fare evasion.

Office Buildings

Core Problem Solved:
Improves employee access management and enhances building security with RFID authentication.

Factories and Industrial Parks

Core Problem Solved:
Restricts unauthorized personnel entry and records staff attendance accurately.

Residential Communities

Core Problem Solved:
Provides secure pedestrian entry management for residents and visitors.

Stadiums and Public Venues

Core Problem Solved:
Ensures orderly crowd movement and reduces congestion during peak events.


FAQ
Q1: Does the JSD-Z03 support RFID access control?

Yes, the turnstile supports RFID card readers and can integrate with various access control systems.

Q2: Can the turnstile be used outdoors?

Yes, the 304 stainless steel body provides strong corrosion resistance for indoor and outdoor use.

Q3: Is bi-directional access available?

Yes, the system can be configured for single-direction or bi-directional passage control.

Q4: What communication interface does the turnstile use?

The JSD-Z03 uses an RS485 communication interface with a transmission distance of up to 1200 meters.

Q5: What is the pedestrian throughput capacity?

The turnstile supports 30–45 people per minute during open passage mode.

Q6: Can the arm length be customized?

Yes, the arm length can be adjusted from 500 mm to 900 mm according to project requirements.
