| Brand Name: | Jieshida |
| Model Number: | JSD-B42 |
| MOQ: | 1 SET |
| Price: | USD 200-800 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

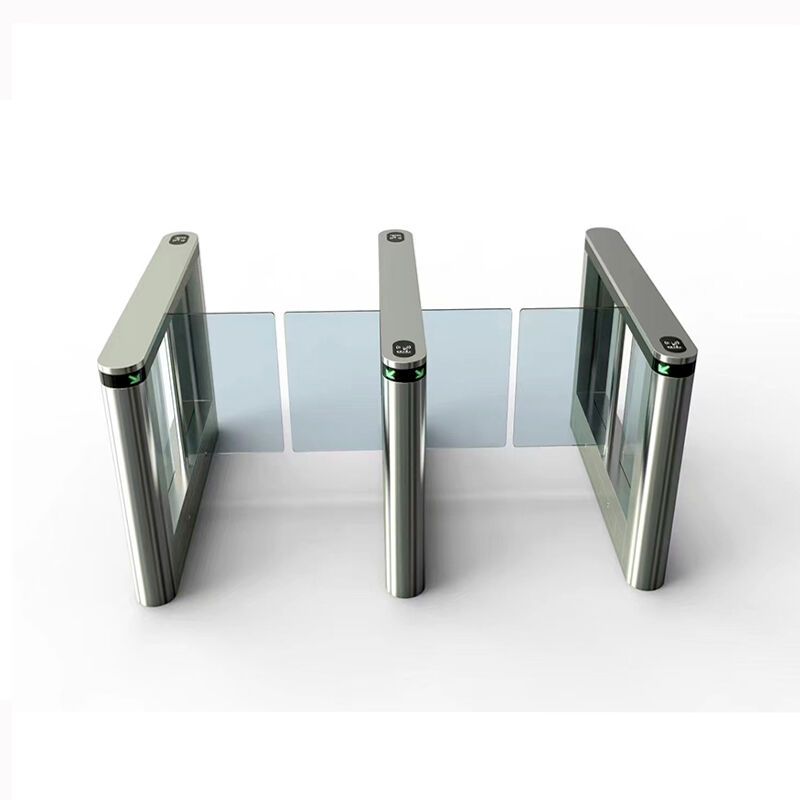

The JSD-B42 Swing Barrier is a luxury high-end access control solution, defined by its 1400*150*980mm slim profile and exquisite stainless steel craftsmanship. Built with premium 304 brushed stainless steel, this swing barrier combines elegant aesthetics with industrial-grade durability. Powered by a DC brushless motor, it delivers smooth, silent operation with a fast 0.5-second opening time, ideal for upscale commercial environments seeking both style and reliability.
| Parameter | Specification |
|---|---|
| Material | 304 Brushed Stainless Steel |
| Chassis Thickness | 1.2mm (Top Cover), 1.0mm (Body) |
| Dimensions | 1400*150*980mm |
| Passage Width | 550–1000mm |
| Power Input | AC220V±10%, 50Hz±4% |
| Working Voltage | DC24V / DC12V |
| Communication Interface | RS485 (≤1200m) / TCP/IP (Optional) |
| Working Temperature | -10°C ~ 60°C |
| Opening Time | 0.5 Seconds |
| Service Life | Over 3 Million Cycles |
Q: Can the passage width be adjusted for specific needs?
A: Yes, the JSD-B42 Swing Barrier supports adjustable passage widths from 550mm to 1000mm to meet diverse project requirements.
Q: What maintenance does the barrier require?
A: The stainless steel body is easy to clean, and the detachable terminals simplify maintenance, ensuring long-term performance with minimal upkeep.
Q: Is it compatible with third-party access control systems?
A: Yes, it supports standard dry contact signals and integrates with most IC/ID readers, QR scanners, and facial recognition modules.
![]()
