| Brand Name: | Jieshida |
| Model Number: | JSD-Z06 |
| MOQ: | 1 SET |
| Price: | USD300~1500 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

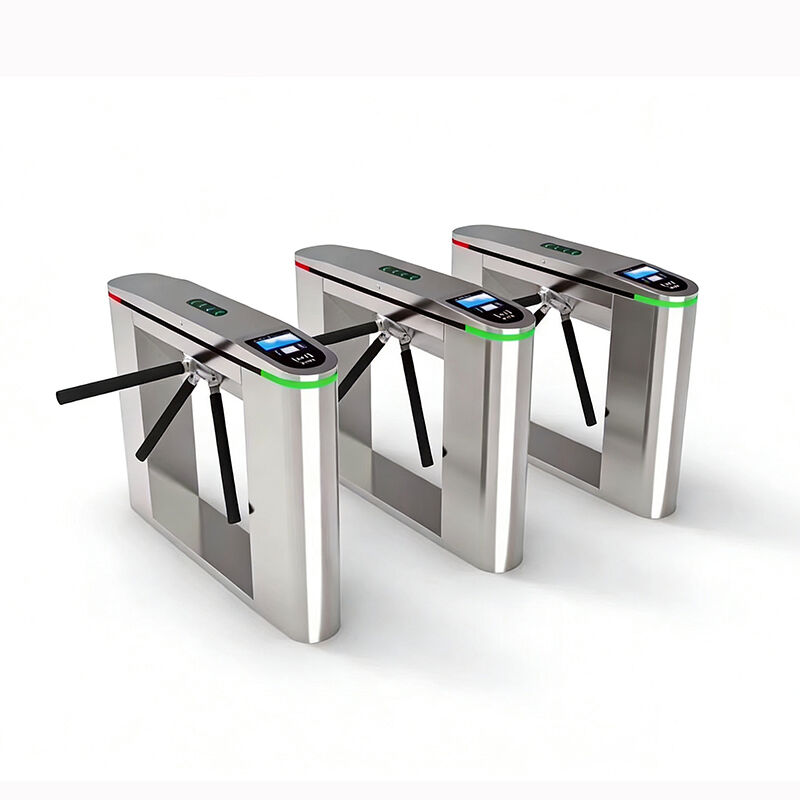

The Z06 Tripod Turnstile is an intelligent and secure pedestrian access control solution designed for visitor management systems in office buildings, factories, campuses, transportation hubs, and public facilities. Built with durable 304 brushed stainless steel, the turnstile features a full automatic mechanism, anti-tailgating protection, and infrared sensor detection for enhanced passage security. Supporting both single and bi-directional control modes, the Z06 delivers smooth operation with a fast 0.5-second opening response and long service life exceeding 3 million cycles. The system can integrate with IC card readers, face recognition devices, QR code scanners, fingerprint systems, and other smart access technologies, providing reliable and efficient visitor access management for indoor and outdoor environments.
Equipped with multiple infrared sensors to detect unauthorized passage and improve visitor access security.
Provides stable, efficient, and fully automatic operation for smooth pedestrian traffic control.
Constructed with premium 304 brushed stainless steel for corrosion resistance and long-term durability.
0.5-second opening response ensures efficient pedestrian throughput during busy periods.
Supports both single-direction and bi-directional access control settings.
Standard configuration includes 4 pairs of infrared sensors with optional expansion for enhanced security detection.
Suitable for both indoor and outdoor applications with stable performance in different environments.
| Item | Specification |
|---|---|
| Product Model | Z06 |
| Product Type | Full Automatic Tripod Turnstile |
| Material | SUS304 Brushed Stainless Steel |
| Top Cover Thickness | 1.5mm |
| Housing Thickness | 1.2mm |
| Cabinet Dimensions | 1400 * 280 * 980mm |
| Passage Direction | Single / Bi-directional |
| Drive Mode | Full Automatic Mechanism |
| Opening Time | 0.5 Seconds |
| Barrier Material | Acrylic or Stainless Steel |
| Infrared Sensors | Standard 4 Pairs (Expandable) |
| Communication Interface | RS485 / Optional TCP-IP |
| Input Signal | Dry Contact / 12V Pulse Signal |
| Working Voltage | DC24V / DC12V |
| Power Input | AC220V±10%, 50Hz±4% |
| Passage Width | 550mm |
| Arm Length | 510mm |
| Operating Temperature | -10℃ ~ 60℃ |
| Humidity | 5%~95%, Non-condensing |
| Working Environment | Indoor / Outdoor |
| Service Life | Over 3 Million Cycles |
Core Problem Solved:
Improves visitor registration and employee access control while preventing unauthorized entry.
Core Problem Solved:
Enhances worker and visitor management with secure anti-tailgating pedestrian control.
Core Problem Solved:
Controls student and visitor access efficiently while improving campus security.
Core Problem Solved:
Provides secure identity verification and controlled entry management for sensitive areas.
Core Problem Solved:
Supports fast pedestrian throughput and organized crowd management in high-traffic environments.
Core Problem Solved:
Improves visitor access efficiency and strengthens building security management.
The Z06 includes anti-tailgating protection and 4 pairs of infrared sensors for improved pedestrian passage security.
Yes. Additional infrared sensor pairs can be customized according to project requirements.
The system supports IC card readers, ID card readers, QR code scanners, face recognition devices, fingerprint systems, and customized third-party access platforms.
Yes. The Z06 is suitable for both indoor and outdoor environments.
The turnstile is designed for over 3 million continuous opening and closing cycles.
Yes. The Z06 supports both single-direction and bi-directional access control modes.
The standard communication interface is RS485, with optional TCP/IP networking support.
Yes. Customization options include access control integration, infrared sensor quantity, barrier material, dimensions, and communication methods.
