| Brand Name: | Jieshida |
| Model Number: | JSD-Z02 |
| MOQ: | 1 SET |
| Price: | USD 300-1,500 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

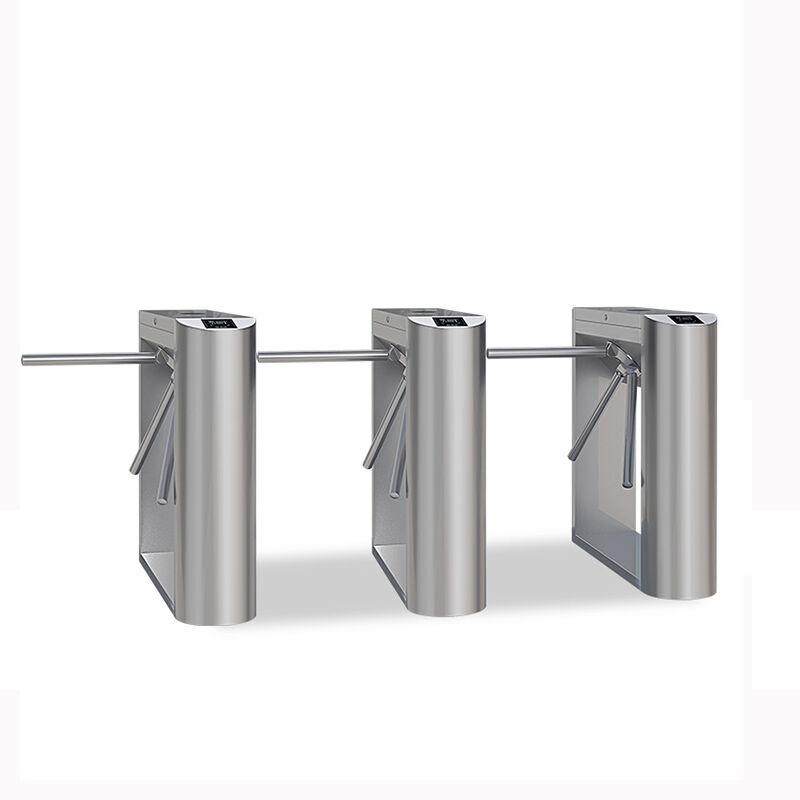

The Z02 Stainless Steel Arc Tripod Turnstile is a reliable and intelligent pedestrian access control solution designed for factories, industrial parks, office buildings, schools, and public facilities. Featuring a modern arc-shaped design and durable 304 brushed stainless steel construction, the turnstile offers excellent durability, corrosion resistance, and long-term operational stability. Equipped with anti-tailgating and anti-reverse functions, the Z02 effectively ensures one-person-per-entry security management. The system supports multiple authentication methods including RFID cards, face recognition, QR codes, and push-button access. With fast opening speed, low operating noise, and flexible single or bi-directional control, the Z02 provides efficient pedestrian flow management for both indoor and outdoor applications.
Elegant arc-shaped cabinet design enhances the appearance of modern entrances while maintaining strong structural durability.
Advanced anti-reverse and anti-tailgating functions help prevent unauthorized access and ensure one-card-one-person passage.
Manufactured with high-quality 304 brushed stainless steel for excellent corrosion resistance and long service life.
0.5-second opening speed improves traffic efficiency during peak entry and exit periods.
Face recognition systems
RFID / IC card readers
QR code scanners
Fingerprint devices
Push button access
Remote control systems
Supports both single-direction and bi-directional access control settings.
Low operating noise below 50DB ensures comfortable use in offices and industrial environments.
Suitable for indoor and outdoor installation with optional rain cover protection.
| Item | Specification |
|---|---|
| Product Model | Z02 |
| Product Type | Arc Tripod Turnstile |
| Material | 304 Brushed Stainless Steel |
| Top Cover Thickness | 1.2mm |
| Housing Thickness | 1.0mm |
| Passage Direction | Single / Bi-directional |
| Drive Method | Motor or Solenoid Valve |
| Opening Time | 0.5 Seconds |
| Passage Speed | ＞30 Persons/Minute |
| Anti-Tailgating Function | Supported |
| Working Voltage | DC24V / DC12V |
| Power Input | AC220V±10%, 50Hz±4% |
| Communication Interface | RS485 / Optional TCP-IP |
| Input Signal | Dry Contact / 12V Pulse Signal |
| Lane Width | 500~550mm |
| Arm Length | 510mm |
| Product Dimensions | 1200 * 280 * 980mm |
| Net Weight | 45kg |
| Operating Temperature | -10℃ ~ 60℃ |
| Humidity | 5%~95%, Non-condensing |
| Installation Environment | Indoor / Outdoor |
| Noise Level | ＜50DB |
Core Problem Solved:
Prevents unauthorized personnel entry and improves employee attendance management with secure access verification.
Core Problem Solved:
Controls high-volume worker movement efficiently while enhancing overall site security management.
Core Problem Solved:
Provides organized employee access control and reduces tailgating risks in corporate environments.
Core Problem Solved:
Restricts access to authorized personnel only and improves operational safety in restricted areas.
Core Problem Solved:
Manages student and visitor access effectively while maintaining campus security.
Core Problem Solved:
Strengthens controlled entry management and prevents unauthorized intrusion into sensitive areas.
The Z02 supports face recognition, RFID/IC cards, QR code scanners, fingerprint readers, push buttons, and remote-control access systems.
Yes. The turnstile is suitable for outdoor installation. A rain shelter is recommended for enhanced weather protection.
Yes. The turnstile can be configured for both single-direction and bi-directional passage control.
The Z02 includes anti-tailgating and anti-reverse rotation functions to ensure secure one-person-per-entry passage.
The gate opening response time is approximately 0.5 seconds for efficient pedestrian throughput.
