| Brand Name: | Jieshida |
| Model Number: | JSD-B22 |
| MOQ: | 1 SET |
| Price: | USD 200-800 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

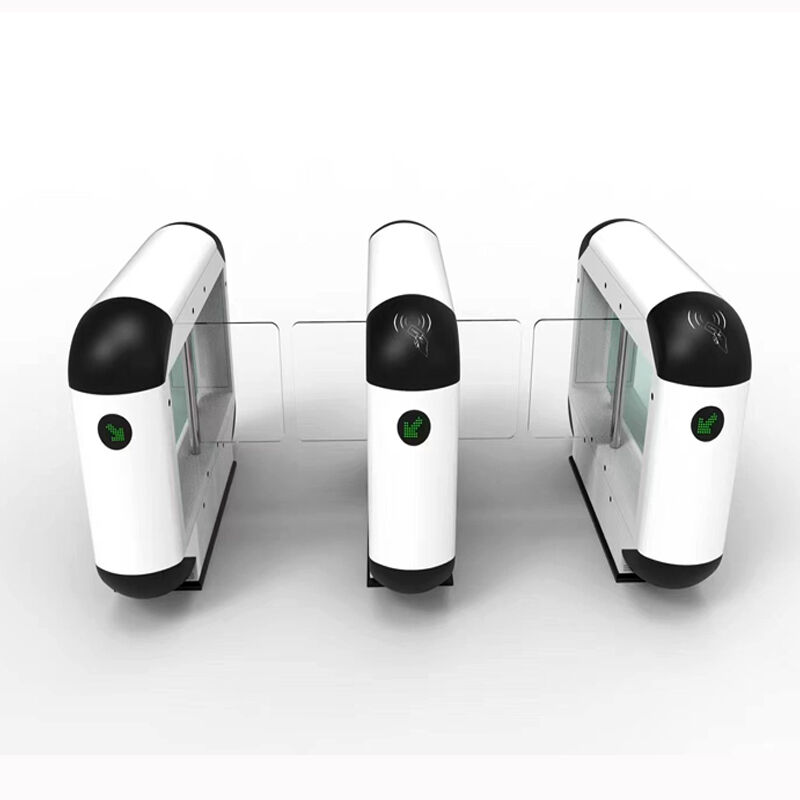

The JSD-B22 Panda Swing Turnstile is a creative and intelligent pedestrian access control solution specially designed for amusement parks, theme parks, children's entertainment centers, and family-friendly public venues. Featuring a unique panda-inspired appearance and durable cold-rolled steel cabinet structure, the turnstile combines attractive design with reliable security performance. Equipped with a DC brushless motor and industrial-grade ARM control system, the JSD-B22 Panda Swing Turnstile delivers smooth, quiet, and efficient operation with a fast 0.5-second opening response and more than 3 million operating cycles. The system supports RFID access control and optional integrations with QR code scanners, face recognition devices, and ticket verification systems. With anti-tailgating protection, intelligent buffering, automatic reset, and emergency evacuation functions, the turnstile provides safe and efficient pedestrian management for entertainment environments.
Panda-Themed Creative Design
The attractive panda-style appearance enhances the visitor experience and creates a friendly entrance environment for amusement venues.
RFID & Ticket Verification Integration
Supports RFID card systems and optional integration with QR code ticket scanners, face recognition devices, and fingerprint readers.
Industrial ARM Intelligent Controller
Adopts a next-generation ARM control system with digital configuration, intelligent management, and encryption protection functions.
DC Brushless Motor System
Provides stable, low-noise, and energy-efficient operation with smooth pedestrian passage control.
Intelligent Anti-Tailgating Protection
Infrared sensors detect unauthorized following, illegal entry, and forced intrusion to improve entrance security.
Automatic Reset Function
The swing arm automatically returns to the initial position after authorized passage or when no passage occurs within the preset delay time.
Adjustable Operating Speed
Opening and closing speed can be adjusted according to pedestrian traffic flow and venue operation requirements.
Anti-Reverse & Anti-Collision Protection
The system automatically activates reverse thrust and buffering protection when abnormal reverse force or impact is detected.
Emergency Fire Alarm Integration
Supports fire alarm signal connection to automatically keep the gate open during emergency evacuation situations.
Unattended Automatic Operation
The swing arm automatically opens during power failure and restores blocking mode after power recovery.
| Item | Specification |
|---|---|
| Product Model | JSD-B22 Panda Swing Turnstile |
| Housing Material | Cold-Rolled Steel |
| Drive Motor | DC Brushless Motor |
| Passage Direction | Single / Bi-directional |
| Opening Time | 0.5 Seconds |
| Passage Width | 600mm |
| Input Voltage | AC220V±10%, 50Hz |
| Working Voltage | DC24V / DC12V |
| Communication Interface | RS485 / Optional TCP/IP |
| Infrared Sensors | 4 Pairs Standard |
| Barrier Material | Acrylic or Stainless Steel |
| Working Temperature | -10°C ~ 60°C |
| Working Environment | Indoor & Outdoor |
| Service Life | Over 3 Million Cycles |
Amusement Parks
Core Problem Solved:
Provides fast and organized visitor entry management while enhancing the entertainment atmosphere with a creative appearance.
Theme Parks
Core Problem Solved:
Improves ticket verification efficiency and prevents unauthorized entry during peak visitor periods.
Children's Play Centers
Core Problem Solved:
Creates a child-friendly entrance environment while maintaining safe pedestrian access control.
Family Entertainment Centers
Core Problem Solved:
Supports smooth visitor flow management and reduces congestion at entrance areas.
Zoo & Aquarium Entrances
Core Problem Solved:
Enhances visitor experience with attractive themed access control equipment and intelligent admission management.
Exhibition & Event Venues
Core Problem Solved:
Provides efficient crowd control and ticket verification for temporary or permanent event entrances.
Q1: What authentication methods are supported by the JSD-B22 Panda Swing Turnstile?
A: The system supports RFID card readers and optional integrations with QR code ticket scanners, face recognition devices, fingerprint readers, and ID verification systems.
Q2: Is the JSD-B22 Panda Swing Turnstile suitable for children's venues?
A: Yes. The panda-themed appearance is specially designed for amusement parks, children's entertainment centers, and family-friendly venues.
Q3: Does the system support anti-tailgating detection?
A: Yes. The built-in infrared sensors detect unauthorized following and trigger alarm notifications automatically.
Q4: What happens during a power outage?
A: The swing arm automatically opens during power failure to allow emergency evacuation and free pedestrian passage.
Q5: Can the operating speed be adjusted?
A: Yes. Multiple speed levels can be configured according to visitor traffic flow and operational requirements.
Q6: Is the turnstile suitable for outdoor installation?
A: Yes. The durable cabinet structure supports both indoor and outdoor applications.
Q7: What communication interfaces are available?
A: Standard RS485 communication is supported, with optional TCP/IP networking available for smart management system integration.
Q8: How durable is the JSD-B22 Panda Swing Turnstile?
A: The system is designed for more than 3 million continuous opening and closing cycles for long-term stable operation.
