| Brand Name: | Jieshida |
| Model Number: | JSD-B38 |
| MOQ: | 1 SET |
| Price: | USD 200-800 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

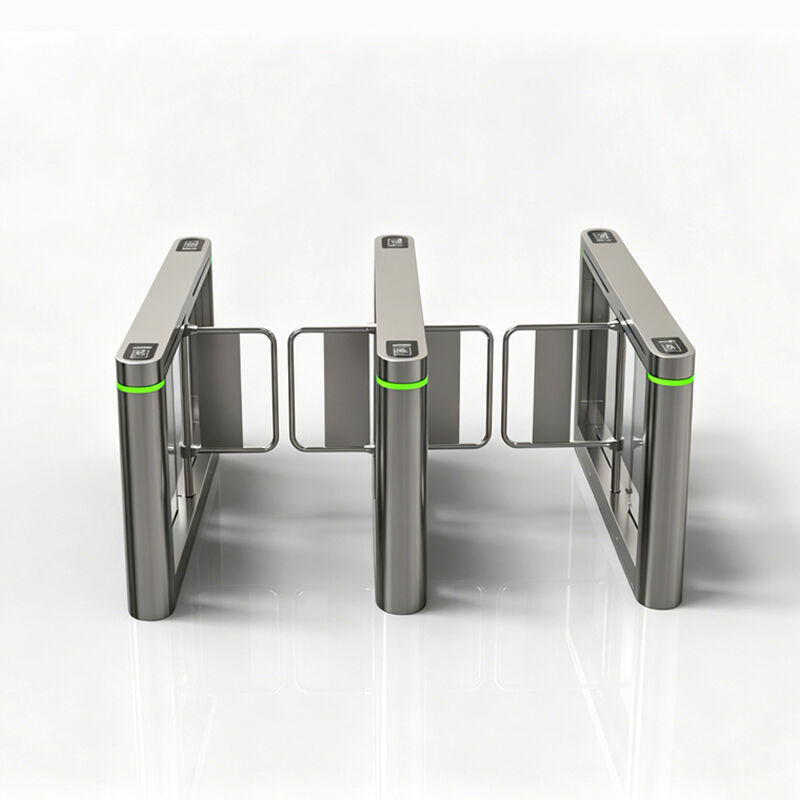

The JSD-B38 High Speed Swing Turnstile Barrier is an advanced pedestrian access control solution designed for smart buildings, office towers, business centers, and modern commercial facilities. Built with premium 304 brushed stainless steel, the JSD-B38 combines elegant appearance, high-speed performance, and intelligent security management. Powered by a DC brushless motor and industrial-grade ARM control system, the turnstile delivers smooth, low-noise operation with a rapid 0.5-second opening response and more than 5 million operating cycles. The system supports face recognition authentication and optional RFID, QR code, and fingerprint integration. Featuring intelligent anti-tailgating detection, anti-collision protection, automatic reset, and emergency fire alarm functions, the JSD-B38 ensures efficient and secure pedestrian management for indoor and outdoor smart access environments.
The JSD-B38 provides a fast 0.5-second opening response, improving pedestrian flow efficiency in busy smart building entrances.
Supports advanced face recognition systems for secure, contactless, and intelligent access management.
Constructed with durable 304 brushed stainless steel for long-term performance and modern architectural aesthetics.
Infrared sensors detect unauthorized following, illegal intrusion, and forced entry to enhance security management.
Equipped with a next-generation ARM controller supporting digital settings, encryption protection, and intelligent operational management.
Provides stable, energy-efficient, and low-noise operation with smooth movement and excellent durability.
Multiple operating speed levels allow flexible adjustment according to pedestrian flow and project requirements.
The system automatically activates reverse thrust and buffering protection when abnormal reverse force or violent impact is detected.
When continuous external force blocks normal operation, the gate automatically enters protection mode and restores operation after receiving a valid signal.
Supports fire alarm signal connection to automatically keep the gate open during emergency evacuation situations.
| Item | Specification |
|---|---|
| Product Model | JSD-B38 High Speed Swing Turnstile |
| Housing Material | 304 Brushed Stainless Steel |
| Drive Motor | DC Brushless Motor |
| Passage Direction | Single / Bi-directional |
| Opening Time | 0.5 Seconds |
| Passage Width | 550–1000mm |
| Input Voltage | AC220V±10%, 50Hz |
| Working Voltage | DC24V / DC12V |
| Communication Interface | RS485 / Optional TCP/IP |
| Infrared Sensors | 4 Pairs Standard |
| Barrier Material | Acrylic or Stainless Steel |
| Working Temperature | -10°C ~ 60°C |
| Working Environment | Indoor & Outdoor |
| Service Life | Over 5 Million Cycles |
Core Problem Solved:
Provides fast and secure employee access management while supporting contactless face recognition authentication.
Core Problem Solved:
Improves pedestrian flow efficiency and prevents unauthorized access in high-traffic commercial entrances.
Core Problem Solved:
Enhances customer and visitor access control with intelligent anti-tailgating protection and fast passage speed.
Core Problem Solved:
Supports centralized intelligent access management and secure personnel authentication.
Core Problem Solved:
Strengthens restricted area security while maintaining smooth pedestrian traffic for employees and visitors.
Core Problem Solved:
Maintains orderly and efficient pedestrian flow in busy public access environments.
Q1: What authentication methods are supported by the JSD-B38?
A: The JSD-B38 supports face recognition systems and optional RFID cards, QR code scanners, fingerprint readers, and ID card verification devices.
Q2: Is the JSD-B38 suitable for high-traffic environments?
A: Yes. The turnstile features a fast 0.5-second opening response and supports more than 5 million operating cycles for high-frequency use.
Q3: Does the system support anti-tailgating detection?
A: Yes. Multiple infrared sensors detect unauthorized following and trigger alarm notifications automatically.
Q4: Can the passage width be customized?
A: Yes. The passage width can range from 550mm to 1000mm depending on project requirements.
Q5: What happens during a power outage?
A: The swing arm automatically opens during power failure to allow emergency evacuation and free pedestrian passage.
Q6: Is the turnstile suitable for outdoor installation?
A: Yes. The durable 304 stainless steel structure supports both indoor and outdoor applications.
Q7: What communication interfaces are available?
A: Standard RS485 communication is supported, with optional TCP/IP networking available for smart system integration.
Q8: How durable is the JSD-B38 swing turnstile?
A: The system is designed for more than 5 million continuous opening and closing cycles for long-term reliable operation.
