| Brand Name: | Jieshida |
| Model Number: | JSD-B15 |
| MOQ: | 1 SET |
| Price: | USD 200-800 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

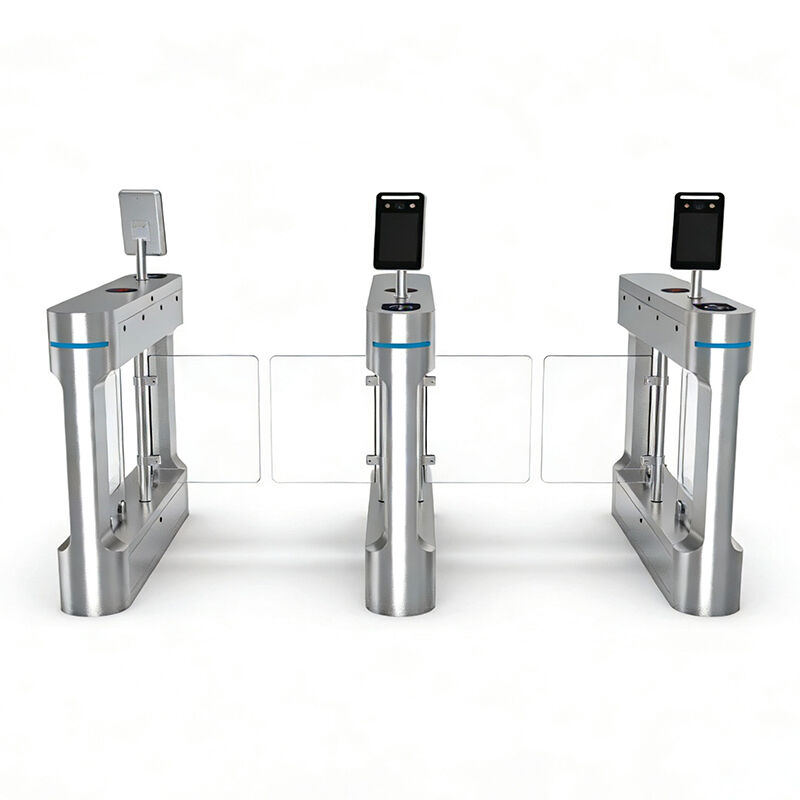

The JSD-B15 Compact Swing Turnstile is an intelligent pedestrian access control system designed for commercial buildings, office entrances, residential communities, and public facilities. Constructed with premium 304 brushed stainless steel, the turnstile combines a compact modern appearance with stable and long-lasting performance. Powered by a DC brushless motor and industrial-grade ARM control system, the JSD-B15 provides smooth, low-noise operation with a fast 0.5-second opening response and a service life exceeding 3 million cycles. The system supports RFID authentication and optional biometric integrations including face recognition, QR code scanning, and fingerprint verification. Equipped with anti-tailgating detection, automatic reset, anti-collision protection, and emergency fire alarm functions, the JSD-B15 ensures secure and efficient pedestrian access management for indoor and outdoor environments.
Compact Modern Structure
The slim cabinet design saves installation space while maintaining a professional and modern appearance for commercial entrances.
RFID Access Control Integration
Compatible with RFID card readers and optional face recognition, fingerprint, QR code, and ID card verification systems.
Intelligent Anti-Tailgating Detection
Infrared sensors detect unauthorized following, illegal intrusion, and forced entry to improve security management.
Automatic Reset Function
The swing arm automatically resets after authorized passage or cancels access permission if no pedestrian passes within the preset delay time.
Industrial ARM Intelligent Control
Equipped with a new-generation industrial-grade ARM controller supporting digital configuration, encryption protection, and intelligent management.
DC Brushless Anti-Collision Motor
Provides stable, quiet, and energy-efficient operation with intelligent reverse thrust protection against violent impacts.
Adjustable Operating Speed
Multiple speed levels allow flexible adjustment according to pedestrian flow and application requirements.
Intelligent Alarm & Self-Diagnosis
Supports automatic fault detection, illegal intrusion alarms, forced entry alerts, and maintenance reminders for reliable operation.
Fire Alarm Emergency Integration
The system can connect with fire alarm systems to automatically keep the gate open during emergency evacuation situations.
Unattended Automatic Operation
During power failure, the swing arm automatically opens for free passage and restores blocking mode after power recovery.
| Item | Specification |
|---|---|
| Product Model | JSD-B15 Compact Swing Turnstile |
| Housing Material | 304 Brushed Stainless Steel |
| Drive Motor | DC Brushless Motor |
| Passage Direction | Single / Bi-directional |
| Opening Time | 0.5 Seconds |
| Passage Width | 1100mm |
| Input Voltage | AC220V±10%, 50Hz |
| Working Voltage | DC24V / DC12V |
| Communication Interface | RS485 / Optional TCP/IP |
| Infrared Sensors | 4 Pairs Standard |
| Barrier Material | Acrylic or Stainless Steel |
| Working Temperature | -10°C ~ 60°C |
| Installation Environment | Indoor & Outdoor |
| Service Life | Over 3 Million Cycles |
Commercial Buildings
Core Problem Solved:
Improves entrance security management while maintaining efficient pedestrian flow for employees and visitors.
Office Buildings
Core Problem Solved:
Supports employee attendance management and secure access authentication through RFID and biometric systems.
Residential Communities
Core Problem Solved:
Prevents unauthorized access and improves resident safety with intelligent access control management.
Shopping Centers & Retail Stores
Core Problem Solved:
Enhances customer flow management while reducing unauthorized entry and tailgating behavior.
Industrial Parks & Factories
Core Problem Solved:
Provides controlled personnel access management and protects restricted operational areas.
Transportation Facilities
Core Problem Solved:
Maintains orderly pedestrian movement and improves access security in high-traffic public areas.
Q1: What access control systems are supported?
A: The JSD-B15 swing turnstile supports RFID cards and optional integrations with face recognition, QR code scanners, fingerprint readers, and ID card systems.
Q2: Is the turnstile suitable for outdoor installation?
A: Yes. The durable 304 stainless steel construction supports both indoor and outdoor environments.
Q3: Does the system support anti-tailgating protection?
A: Yes. Infrared sensors detect unauthorized following and trigger automatic alarm notifications.
Q4: What happens during a power outage?
A: The swing arm automatically opens during power failure to allow emergency evacuation and free pedestrian passage.
Q5: Can the operating speed be adjusted?
A: Yes. The opening and closing speed can be configured according to different traffic flow requirements.
Q6: What communication interfaces are available?
A: Standard RS485 communication is supported, with optional TCP/IP networking available for advanced integration.
Q7: How durable is the JSD-B15 swing turnstile?
A: The system is designed for more than 3 million continuous opening and closing cycles for long-term stable performance.
Q8: Is the gate suitable for wide pedestrian access?
A: Yes. The 1100mm passage width provides comfortable access for high pedestrian traffic environments.
