| Brand Name: | Jieshida |
| Model Number: | JSD-B18 |
| MOQ: | 1 SET |
| Price: | USD 200-800 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

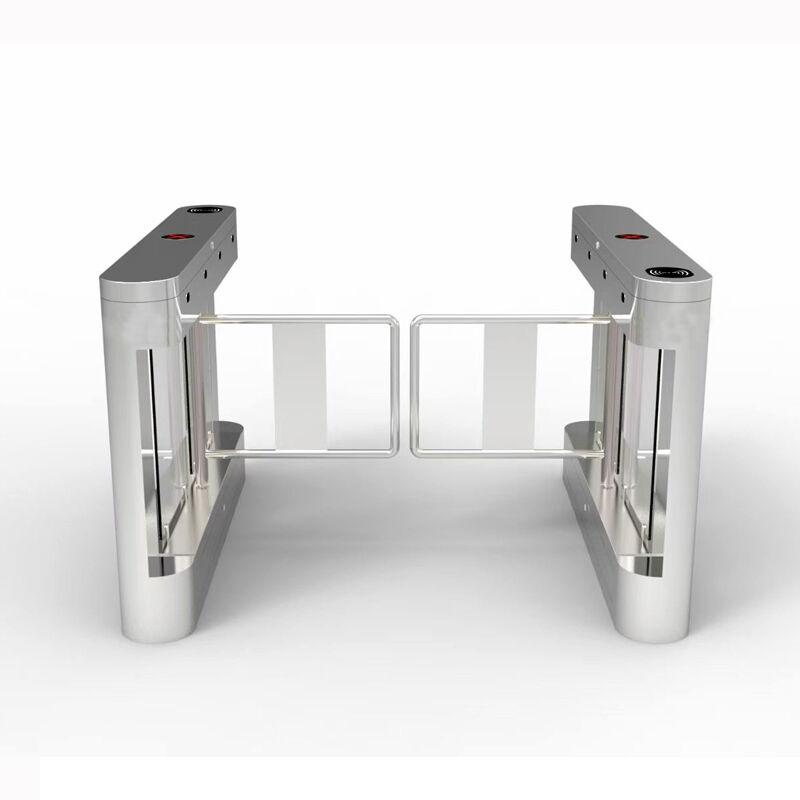

The JSD-B18 Small Swing Turnstile is an intelligent pedestrian access control solution designed for commercial entrances, office buildings, retail stores, residential communities, and public facilities. Built with high-quality 304 brushed stainless steel, the turnstile combines a compact appearance with reliable security performance and long-term durability. Equipped with a DC brushless motor and industrial-grade ARM control system, the gate delivers smooth, quiet, and efficient operation with a fast 0.5-second opening speed. The system supports RFID access control and optional integrations with face recognition, QR code scanning, and fingerprint authentication. Featuring anti-tailgating detection, automatic reset, anti-collision protection, and emergency fire alarm integration, the JSD-B18 swing turnstile provides secure and efficient pedestrian management for both indoor and outdoor applications.
The slim cabinet structure and elegant stainless steel finish make the JSD-B18 ideal for modern commercial entrances and space-saving installations.
Supports RFID card readers and optional integration with face recognition terminals, QR code scanners, fingerprint readers, and ID card systems.
Infrared sensors accurately detect unauthorized following, illegal intrusion, and forced entry to improve entrance security.
The swing arm automatically resets after pedestrian passage or cancels access authorization if passage is not completed within the preset delay time.
Equipped with a new-generation industrial-grade ARM control system supporting digital configuration, encryption protection, and intelligent management.
Provides smooth operation, low noise, high stability, and long service life with intelligent reverse thrust protection.
Opening and closing speed can be adjusted according to pedestrian traffic flow and application requirements.
Supports fault self-checking, illegal intrusion alarms, forced entry notifications, and operational status reminders for convenient maintenance.
The gate can connect with fire alarm systems to automatically remain open during emergency evacuation situations.
During power failure, the swing arm automatically opens for free passage and restores secure blocking mode after power recovery.
| Item | Specification |
|---|---|
| Product Model | JSD-B18 Small Swing Turnstile |
| Housing Material | 304 Brushed Stainless Steel |
| Drive Motor | DC Brushless Motor |
| Passage Direction | Single / Bi-directional |
| Opening Time | 0.5 Seconds |
| Passage Width | 1100mm |
| Input Voltage | AC220V±10%, 50Hz |
| Working Voltage | DC24V / DC12V |
| Communication Interface | RS485 / Optional TCP/IP |
| Infrared Sensors | 4 Pairs Standard |
| Barrier Material | Acrylic or Stainless Steel |
| Working Temperature | -10°C ~ 60°C |
| Installation Environment | Indoor & Outdoor |
| Service Life | Over 3 Million Cycles |
Core Problem Solved:
Controls pedestrian access efficiently while improving security management and reducing unauthorized entry.
Core Problem Solved:
Supports employee attendance management and visitor authentication through RFID and biometric access systems.
Core Problem Solved:
Improves customer flow management while preventing tailgating and unauthorized access.
Core Problem Solved:
Enhances community security by restricting unauthorized visitors and supporting convenient resident access.
Core Problem Solved:
Provides controlled personnel access management and improves restricted area security.
Core Problem Solved:
Maintains smooth pedestrian traffic flow and improves safety management in high-traffic public areas.
