| Brand Name: | Jieshida |
| Model Number: | JSD-B13 |
| MOQ: | 1 SET |
| Price: | USD 200-800 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

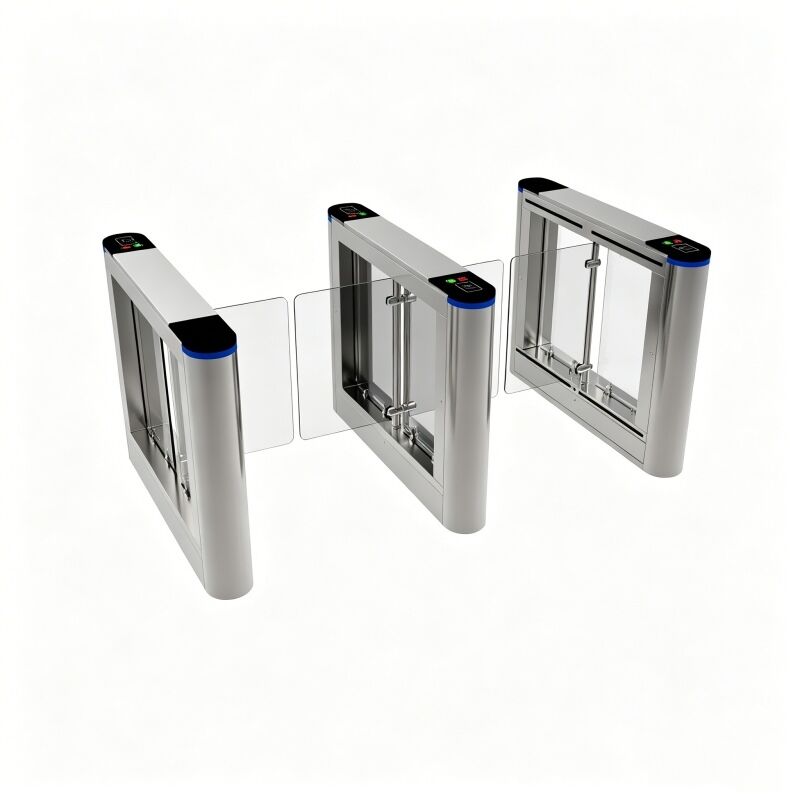

The Premium JSD-B13 Swing Turnstile is a modern and intelligent pedestrian access control solution specially designed for hotel lobbies, luxury commercial buildings, office reception areas, and high-end facilities. Built with premium 304 brushed stainless steel, the turnstile combines elegant appearance, compact structure, and reliable security performance. Equipped with a DC brushless motor and intelligent ARM control system, the gate delivers smooth, low-noise operation with a fast 0.5-second opening response and more than 3 million operating cycles. The system supports RFID authentication and optional biometric integrations, including face recognition and QR code access. Featuring anti-tailgating detection, automatic reset, anti-collision protection, and fire alarm integration, the JSD-B13 swing turnstile provides safe, efficient, and stylish pedestrian management for indoor and outdoor applications.
The slim and modern cabinet design perfectly matches hotel lobbies, executive office buildings, and luxury commercial environments.
Supports RFID card verification and optional integrations with face recognition, fingerprint readers, QR code scanners, and ID card systems.
Infrared sensors accurately detect unauthorized following, illegal intrusion, and forced entry to improve entrance security.
The swing arm automatically returns to the initial position after authorized passage or cancels access permission when no passage occurs within the preset delay time.
Equipped with a new-generation industrial-grade ARM controller supporting digital configuration, encryption protection, and intelligent management.
When abnormal reverse force or violent impact is detected, the gate activates reverse thrust and alarm notifications to reduce mechanical damage.
Multiple speed settings allow flexible adjustment according to different pedestrian flow and security requirements.
Supports fault self-checking, illegal intrusion alarms, forced entry alerts, and maintenance reminders for stable operation.
The system can connect with fire alarm systems to automatically keep the gate open during emergency evacuation.
The swing arm automatically opens during power failure and restores secure blocking mode after power recovery.
| Item | Specification |
|---|---|
| Product Model | JSD-JSD-B13 Swing Turnstile |
| Housing Material | 304 Brushed Stainless Steel |
| Drive Motor | DC Brushless Motor |
| Passage Direction | Single / Bi-directional |
| Opening Time | 0.5 Seconds |
| Passage Width | 600–750mm |
| Input Voltage | AC220V±10%, 50Hz |
| Working Voltage | DC24V / DC12V |
| Communication Interface | RS485 / Optional TCP/IP |
| Infrared Sensors | 4 Pairs Standard |
| Barrier Material | Acrylic or Stainless Steel |
| Working Temperature | -10°C ~ 60°C |
| Installation Environment | Indoor & Outdoor |
| Service Life | Over 3 Million Cycles |
Core Problem Solved:
Provides secure guest and visitor access management while maintaining a premium and elegant entrance appearance.
Core Problem Solved:
Improves employee and visitor access control with intelligent authentication and anti-tailgating protection.
Core Problem Solved:
Enhances pedestrian traffic management and security while matching modern architectural aesthetics.
Core Problem Solved:
Supports orderly pedestrian flow and integrated smart access management in high-traffic environments.
Core Problem Solved:
Ensures restricted area security while delivering a smooth and professional user experience.
Core Problem Solved:
Prevents unauthorized access and improves resident security with RFID and biometric verification systems.
Q1: What authentication systems are supported?
A: The JSD-B13 swing turnstile supports RFID cards and optional integrations with face recognition, fingerprint readers, QR code scanners, and ID card systems.
Q2: Is the turnstile suitable for luxury hotel environments?
A: Yes. The elegant stainless steel finish and compact design make it ideal for premium hotel lobbies and executive entrances.
Q3: Does the system support anti-tailgating detection?
A: Yes. Multiple infrared sensors detect unauthorized following and trigger automatic alarm notifications.
Q4: What happens during a power outage?
A: The swing arm automatically opens during power failure to allow emergency evacuation and free pedestrian passage.
Q5: Can the gate speed be adjusted?
A: Yes. The opening and closing speed can be configured according to different pedestrian flow requirements.
Q6: Is outdoor installation supported?
A: Yes. The turnstile is suitable for both indoor and outdoor applications with durable stainless steel construction.
Q7: What communication interfaces are available?
A: Standard RS485 communication is supported, with optional TCP/IP networking available for smart integration.
Q8: How long is the service life of the turnstile?
A: The system is designed for more than 3 million continuous opening and closing cycles for long-term stable performance.
