| Brand Name: | Shenzhen Jieshida Technology Co., Ltd |
| Model Number: | JSD-Z01 |
| MOQ: | 1 SET |
| Price: | USD 300-1,500 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

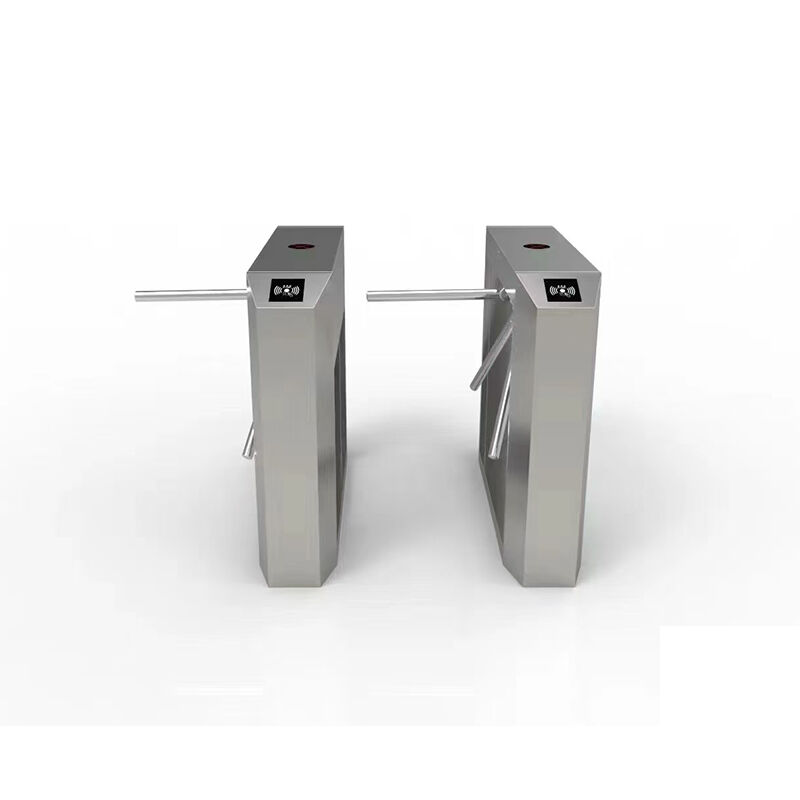

The Anti-reverse Tripod Turnstile Gate is a reliable access control solution for secure pedestrian entry management. Built with 304 stainless steel, it offers strong durability, anti-corrosion performance, and stable operation for long-term use. The gate supports remote control and RFID access, helping manage one-way or bi-directional passage efficiently. With anti-reverse protection, smooth rotation, and easy integration with modern access systems, it is ideal for offices, factories, schools, stations, and other secure entry points.
Office Building
Tripod turnstile gates help control employee access, prevent unauthorized entry, and improve daily attendance management in office environments with stable pedestrian flow.
Factory
In factories, tripod turnstiles provide reliable worker access control, reduce unauthorized entry into production areas, and support shift attendance tracking for better workforce management.
School
Tripod turnstile gates enhance campus security by managing student and visitor access while preventing unauthorized individuals from entering school facilities.
Residential Community
For residential communities, tripod turnstiles improve pedestrian entrance management and strengthen community security through RFID card or QR code verification.
Subway Station
At subway stations, tripod turnstiles efficiently manage high passenger traffic, reduce fare evasion, and maintain orderly entry and exit during peak commuting hours.
Government Building
Tripod turnstiles help government buildings strengthen security control by limiting access to authorized personnel and improving entrance management efficiency.
Commercial Center
In commercial centers, tripod turnstiles help organize visitor flow, improve security management, and support controlled access in busy public areas.
Exhibition Hall
For exhibition halls, tripod turnstiles support ticket verification, improve crowd management efficiency, and help maintain organized visitor entry during large events.
| Parameters | Value |
|---|---|
| Drive Mode | Motor / Solenoid Valve |
| Passage Direction | One-way / Two-way |
| Opening Time | 0.5S |
| Anti-reverse Function | Support |
| Power Supply | AC220V±10%, 50Hz±4% |
| Working Voltage | DC24V / DC12V |
| Traffic Speed | ＞30 Persons/Minute |
| Operating Noise | ＜50DB |
| Communication Interface | RS485 (≤1200m), TCP/IP Optional |
| Input Signal | Dry Contact / 12V Pulse Signal |
| Working Environment | Indoor / Outdoor (Awning Recommended) |
| Working Temperature | -10℃ ~ 60℃ |
| Relative Humidity | 5% ~ 95%, No Condensation |
| Passage Width | 500-550mm |
| Arm Length | 510mm |
| Net Weight | 45KG |
| Cabinet Material | 304 Brushed Stainless Steel |
| Cover Thickness | 1.2mm |
| Cabinet Thickness | 1.0mm |
| Dimension | 1200*280*980mm |
